Standard Equipment
- CNC DELEM DA66T with 2D color graphics
- ACCURL® BGA-2 for X=500mm X, R-Axis, Z1/Z2-Axis as Optional
- ACCURL® Hybrid Servo ECO Function

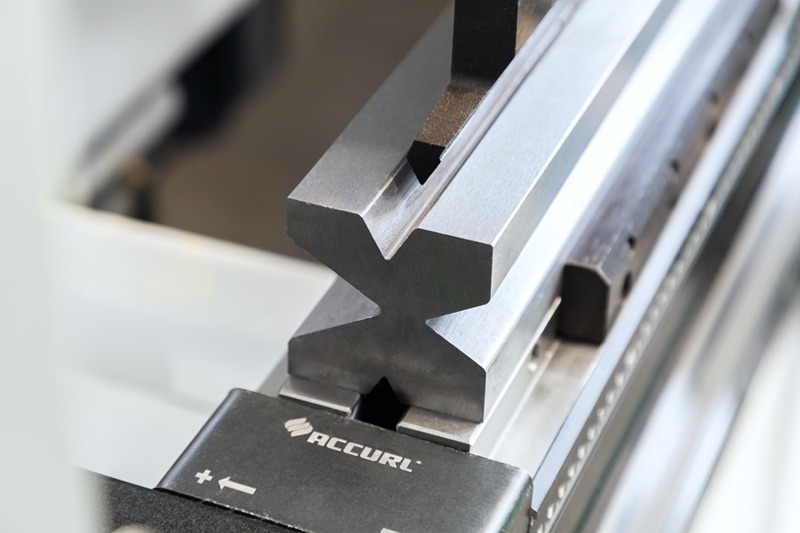

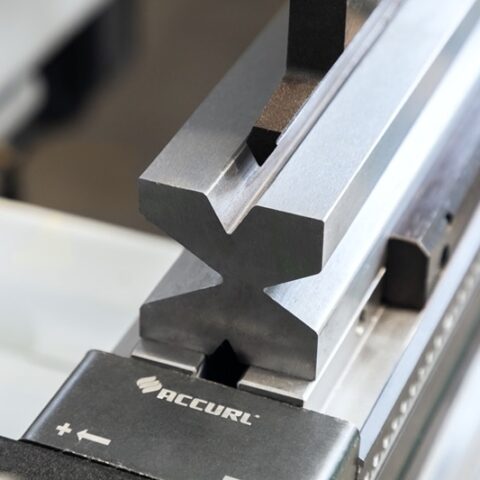

- Tool kit: 4 V die (V=16-22-35-50) series of 835mm punches
- ACCURL Pro CNC wave crowning system
- GIVI optical scales

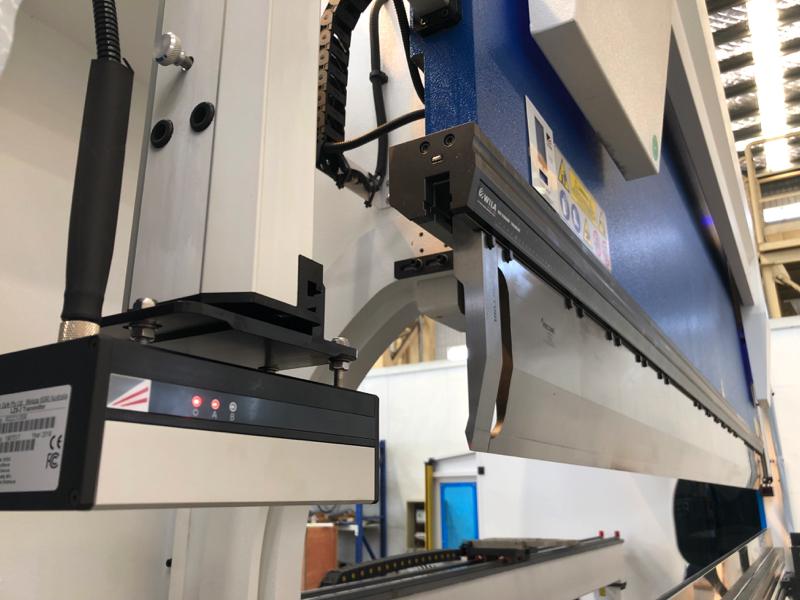

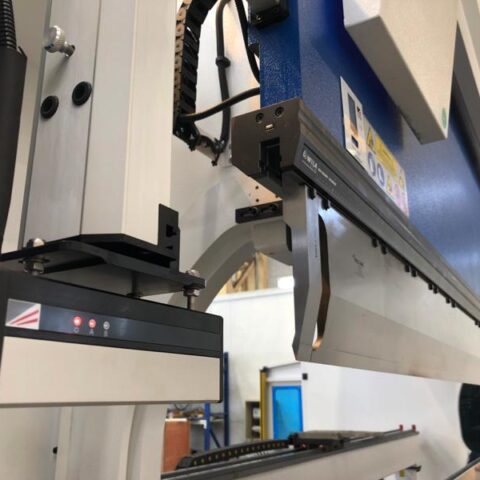

- Lazersafe Systems LZS-2 Block Laser
- Hoerbiger (HAWEI) hydraulic system
- High efficiency motor – class IE3
- DELEM® Profile TL Offline Software

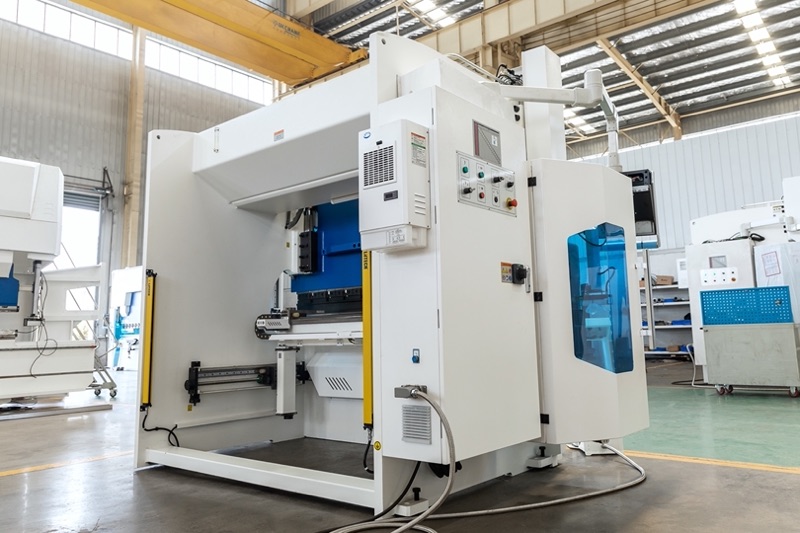

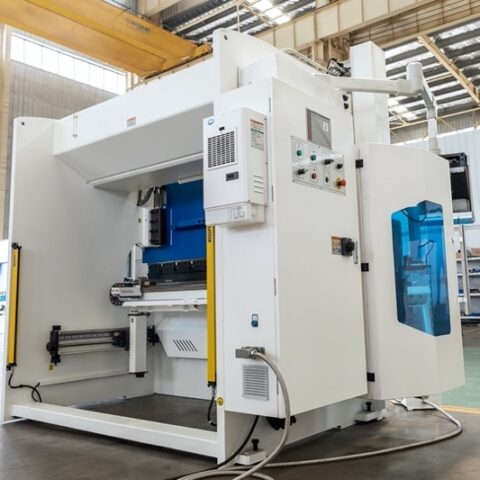

- Electrical cabinet with Schneider, Siemens component
Delem CNC Controls

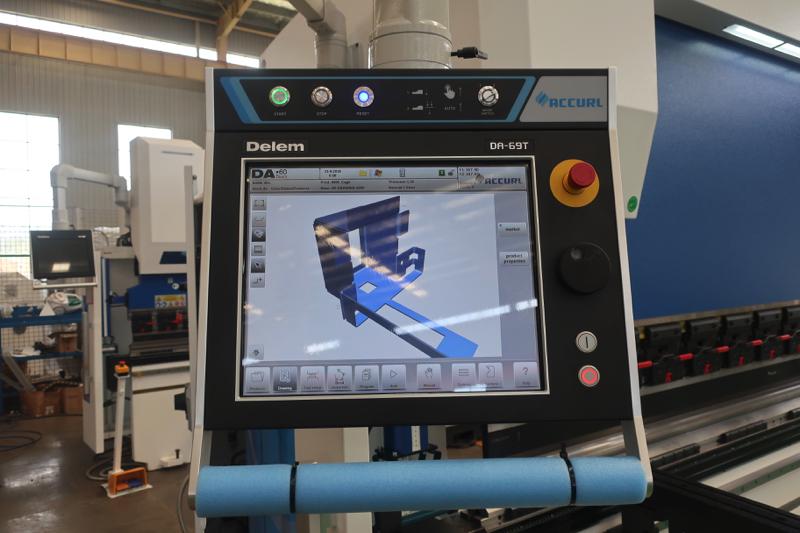

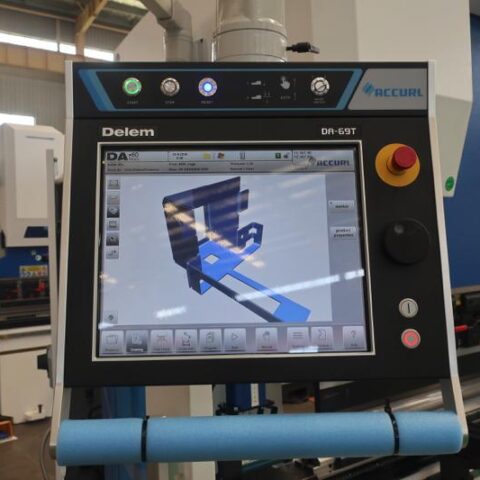

DELEM DA66T Touch 2D Graphical Control
- 17″ high resolution colour TFT
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- Profile-T2D offline software
- Sensor bending & correction interface

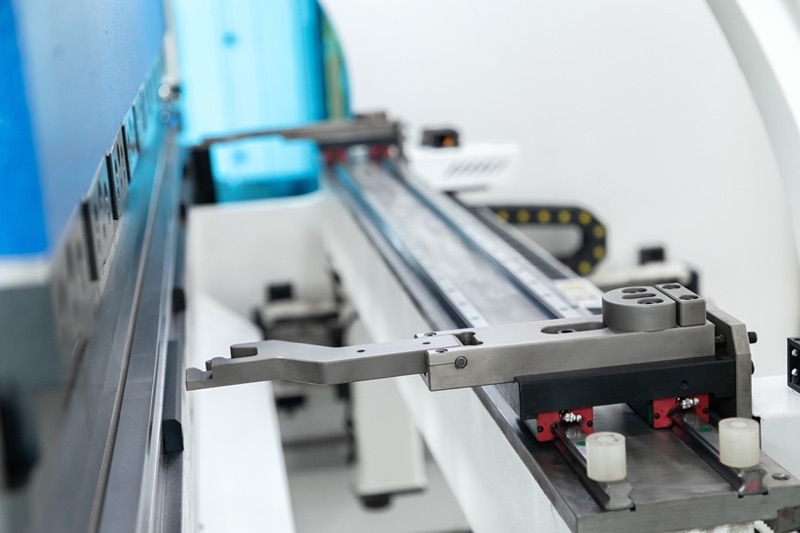

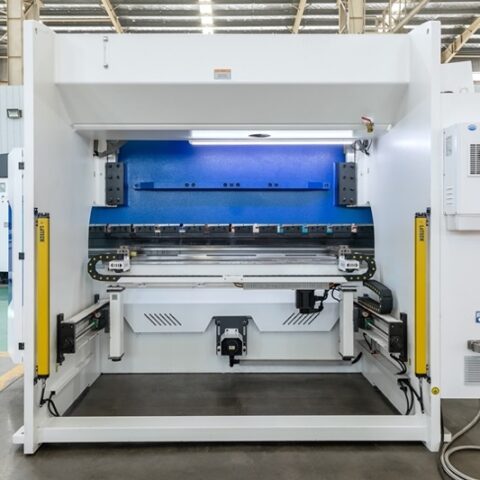

ACCURL BGA-4 BackGauge
Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis
Ball screws and linear guide on X, R-axis.
Precision belts and YYC rack on axes Z1‐Z2.

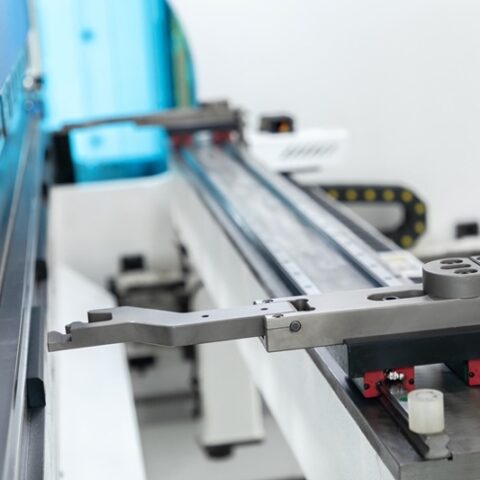

Fingers with double stop and micro metric adjustment.
Mechanical accuracy ± 0.03 mm.
Axes Z1‐Z2 speed 1000 mm/s.
Axis X speed 500 mm/s.
