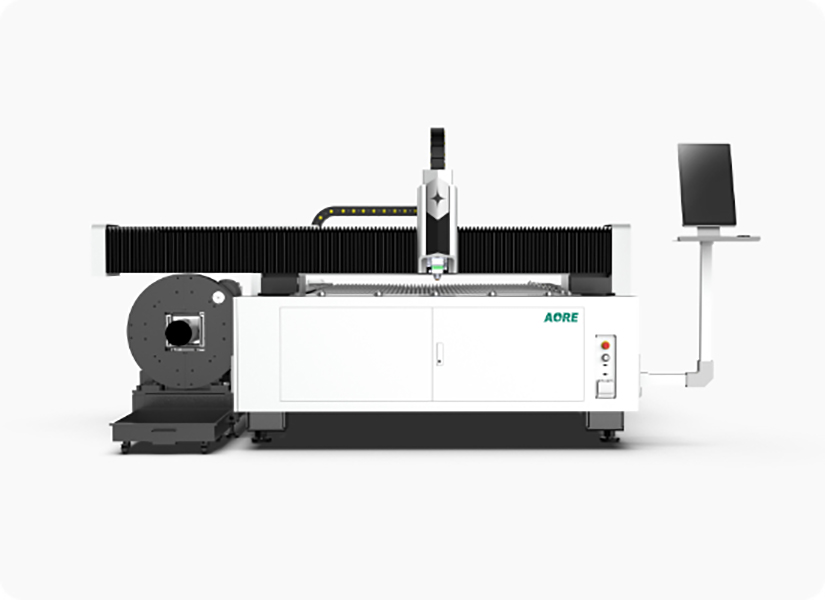

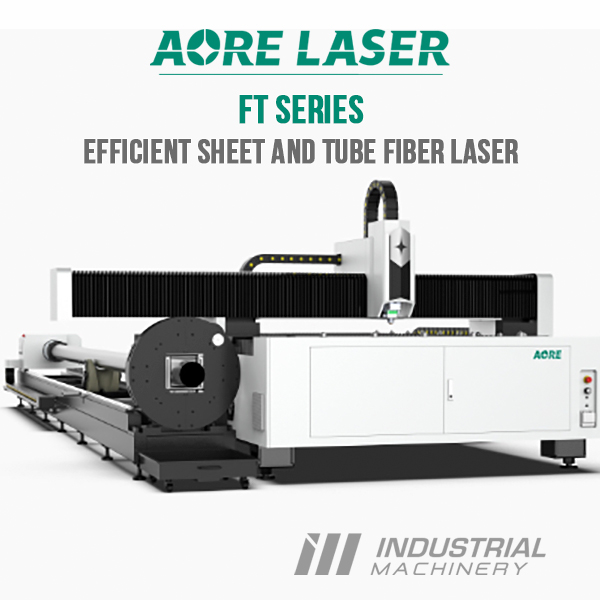

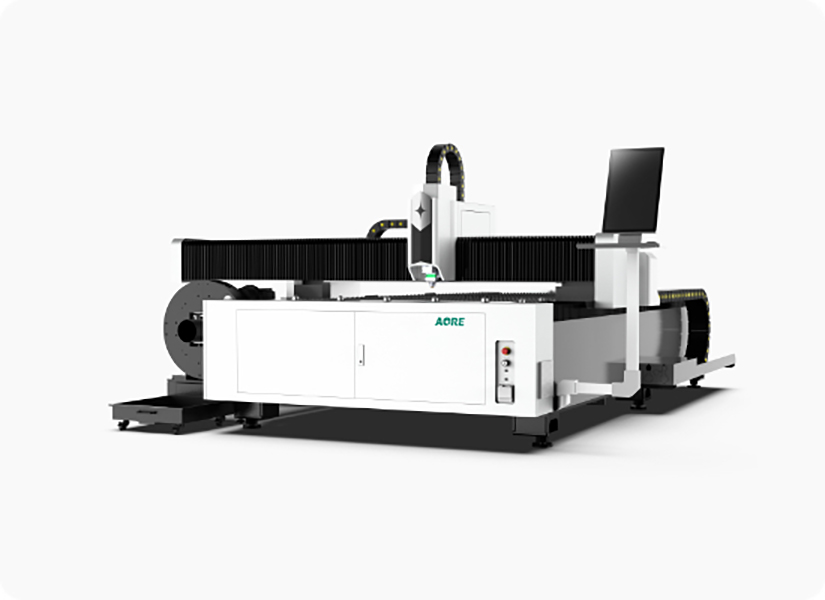

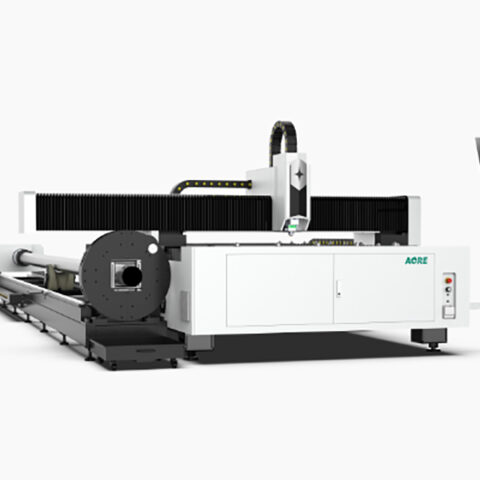

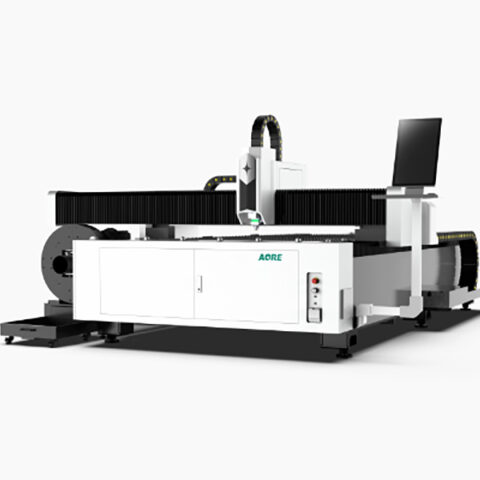

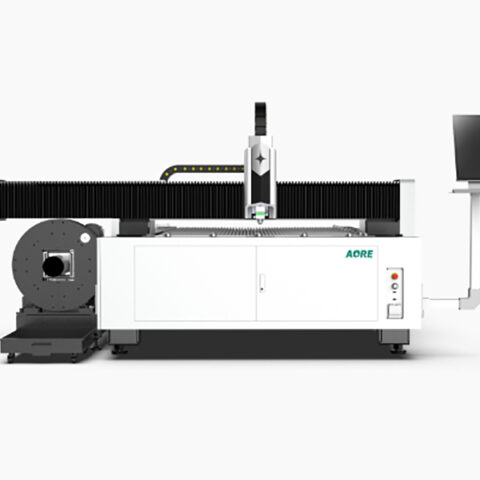

Aore FT Series CNC Sheet and Tube Laser

In stock

Combined Sheet & Pipe Cutting. Open Type thats Economical and Powerful.

Features

  • Heavy duty steel welded machine bed
  • Aviation aluminum alloy beam
  • Double pneumatic chucks
  • Intelligent control system
  • Automatic focusing head
  • Intelligent central lubrication

The four functions are integrated

One machine to solve the multi-process set uncoiling, leveling, cutting, cutting four functions; Upgraded from a single cutting to a one-stop processing line

New double dragon bone bed structure

In response to the needs of thick plate processing, self-developed double keel design with stop insertion; Thick plate cutting without deformation, ensuring long-term stable operation of equipment

Modular countertop design

The modular design of the workbench assembly ensures stable table structure and strong load-bearing capacity, making it easy to disassemble, replace, and maintain

New type of anti burning and thermal insulation technology

Adopting a new type of fire-resistant, anti burning and thermal insulation technology to ensure cutting accuracy and improve equipment service life

Model
FT3015 FT4020 FT6020
Laser power 1.5kW ~ 6kW
Working area
3050*1530mm
4050*2030mm 6050*2030mm
Positioning accuracy ±0.03mm
Repeated positioning accuracy ±0.02mm
Max. running speed 120m/min
