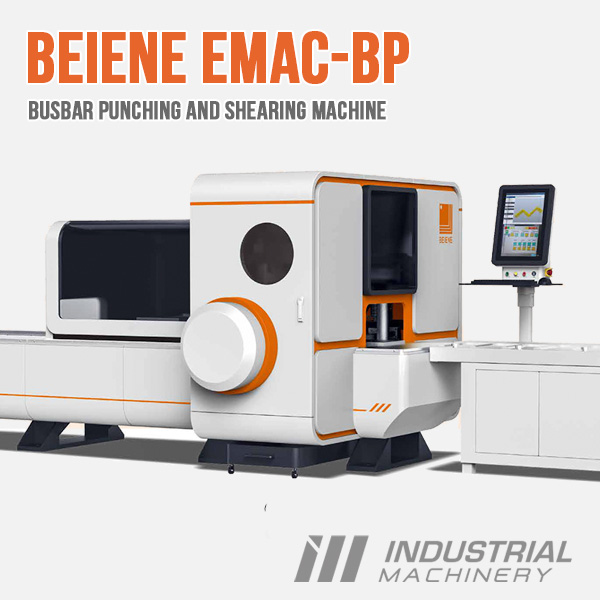

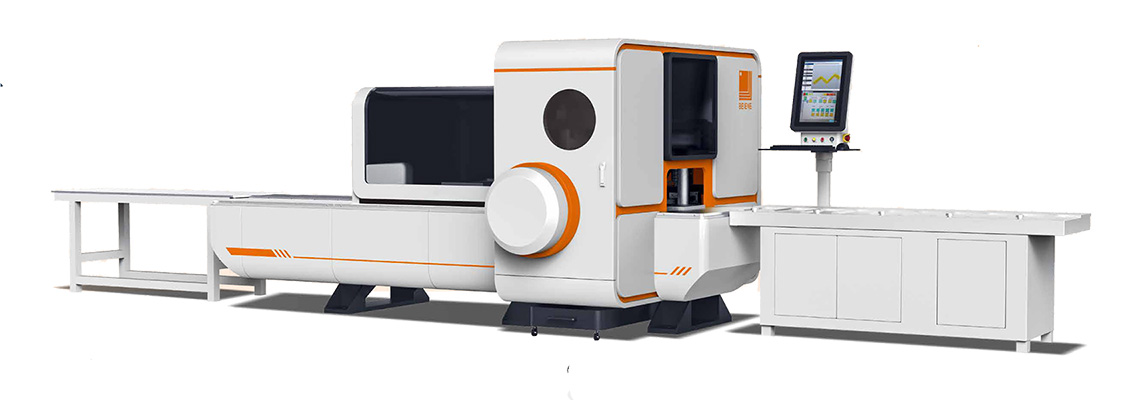

Beiene EMAC-BP Intelligent 3D Busbar Punching and Shearing Machine

In stock

Workflow:

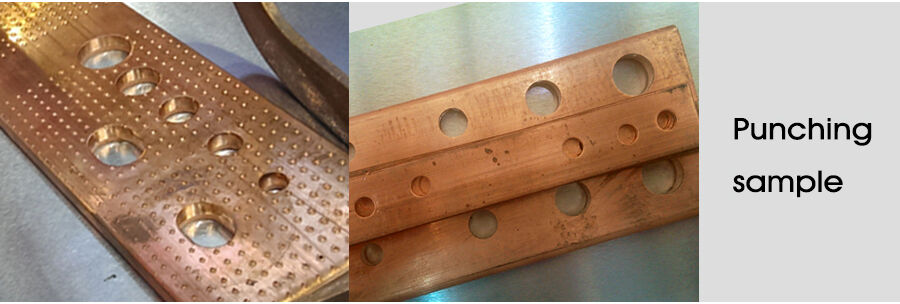

3D Design → Simulate Running → Load  on  Busbar → Start Punching and shearing → Finished Punch and Cut



Advantages of Our Advanced Machinery

Discover the cutting-edge features of our machinery designed to enhance productivity and efficiency:

  1. German Smart Punch Technology: Experience faster and more economical operations.
  2. Intelligent 3D Software: Seamlessly read 3D or 2D drawings directly.
  3. Optimized Blanking & Inventory Management: Benefit from our intelligent bus software for efficient processes.
  4. Pre-Assembled Machine Delivery: Save time with no installation or commissioning required.
  5. Free Online Video Tutorials: Access easy-to-follow learning resources at no cost.
  6. Intelligent Remote Diagnostics: Enjoy efficient service and support with our advanced remote diagnostics.
  7. Optional Automatic Feeding System: Enhance your productivity with our optional automatic feeding system.
  8. German In-Line Mould Library: Choose from 6, 9, and 15 configuration options for versatile moulding needs.
  9. Versatile Shear Mode: Utilise punching shear, single shear, and saw cutting options for diverse applications.

Our machinery combines innovation with practicality to deliver superior performance, making it an invaluable asset for your operations. Explore these advantages and elevate your business capabilities.

Video

Main Technical Parameters:
Description
Unit EMAC-BP-40 EMAC-BP-60 EMAC-BP-80
Press Force Punch Unit (KN) 400 600 800
Shear Unit KN 400 600 800
X Max Speed m/min 100 100 100
X Max Stroke mm 1500 1500 1500
Y Max Speed mm 100 100 100
Z Max Speed mm 60 60 50
Minimum Oddment Length mm 55 55 55
Max Hit Speed HPM 150 180 180
Tool Kit Punch Mold (set) 5 8         ( 7) 8
Shear Mold  set set 1 1          (  1 ) 1
Control Axis 3 3 3
Hole Pitch Accuracy mm/m ±0.20 ±0.20 ±0.20
Max Hole Punch Size mm 32 32 32
Max Busbar Size (W*H) mm 6000x150x12mm 6000x200x16mm 6000x200x20mm
Total power kw 15 12 19.8
Machine Size: L*W mm 6600x2180 6600x2180 6600x2180
Machine Weight kg 6300 6300 6300
