Cosen SH Series Large Semi-Automatic Bandsaw

In stock

Introducing Cosen’s Semi-Auto Dual Column Heavy-Duty Bandsaws:

  • SH5542
  • SH7050
  • SH7550S
  • SH7662

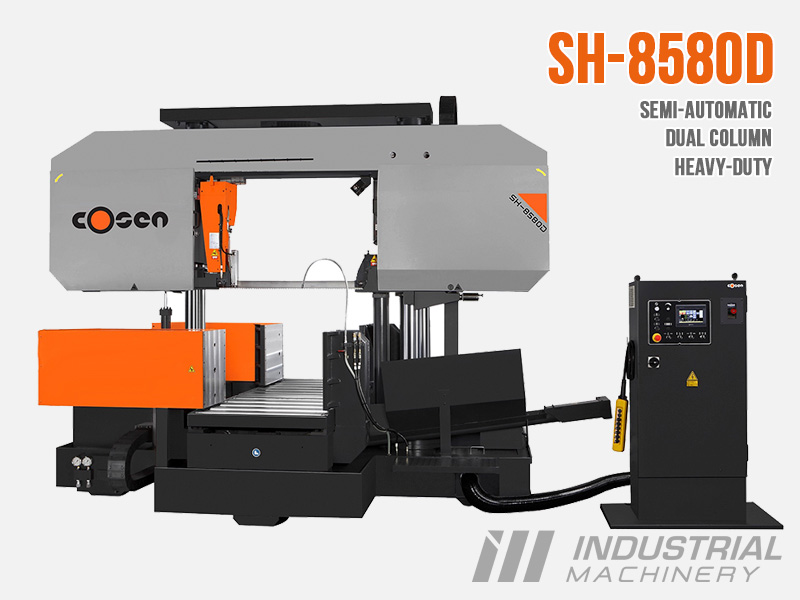

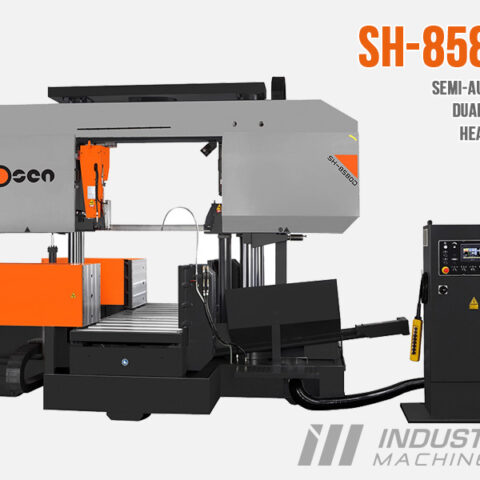

  • SH8580D

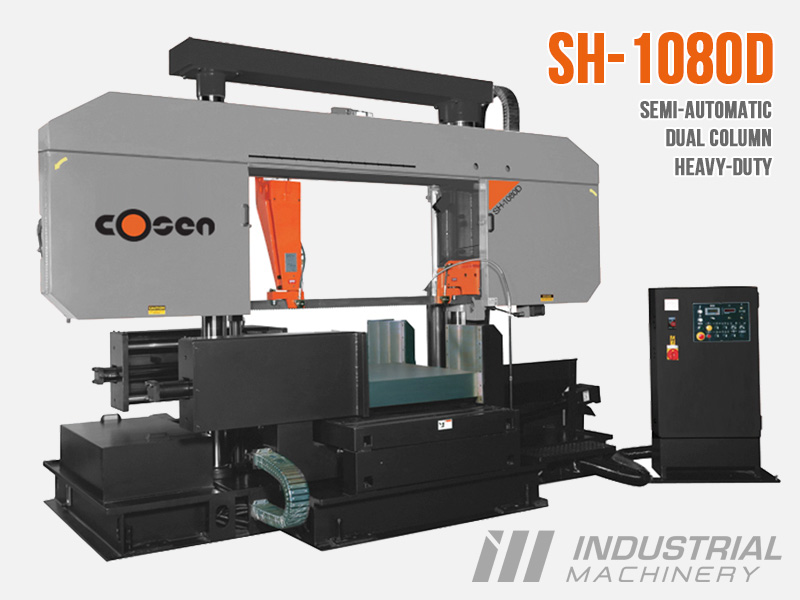

  • SH1080D

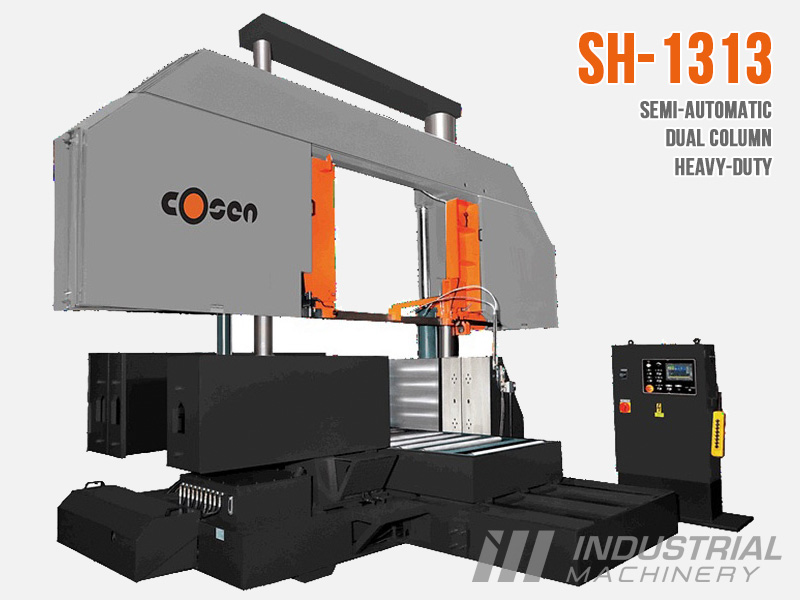

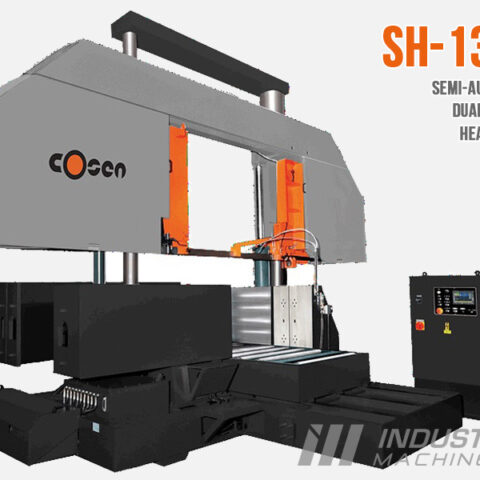

  • SH1313

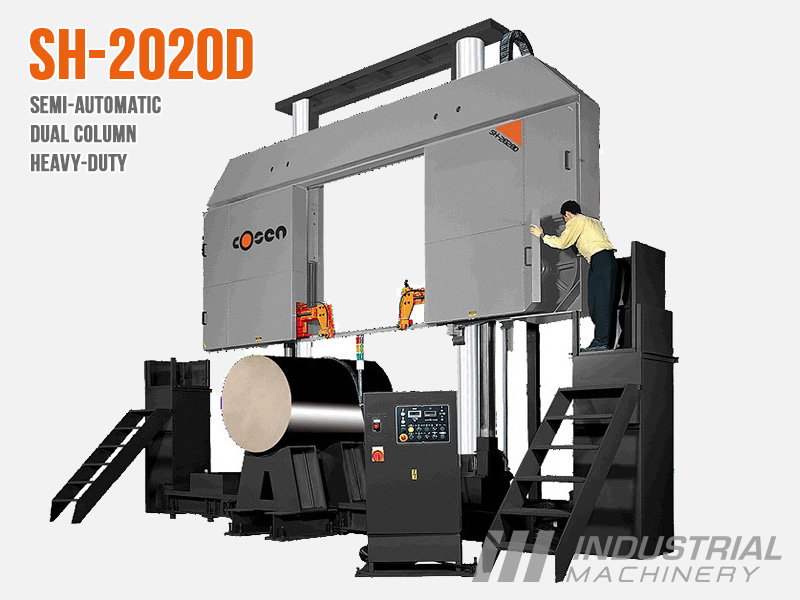

  • SH2020D



  • Dual column design ensures stability.
  • Semi-automatic operation streamlines workflow.
  • Designed for precision and longevity.
  • Ideal for heavy-duty cutting.
  • Precision and power for industrial demands.
  • A reliable choice for professionals.
Brands:

Introducing the SH Twin Column range: Redefining Heavy-Duty Band Saw Performance

? Hydraulic Dual Column Design: Unmatched stability and precision for your cutting tasks.

?️ Built to Last: Gearbox designed to withstand high lateral pressure without thermal distortion.

? Infinite Blade Speeds: Inverter blade drive system for customized cutting speeds.

? Stay Cool: Adjustable flood coolant system and synchronized wire blade brush for clean, efficient cuts.

?️ Enhanced Blade Support: Carbide blade guides, bearing, and cast-iron guide arms for superior stability.

⚙️ Secure Material Clamping: Motor-driven cast-iron hydraulic vise with split jaw design for reduced burr.

⚙️ Optimal Performance: Dual valve feed pressure and feed rate system ensures cutting precision.

⚙️ Automatic Tensioning: Effortless maintenance of blade tension with the automatic hydraulic tensioning device.

COSEN  SH-5542 SH-7550S SH-7662
Capacity Round 420 mm (16.5") 500 mm (20") 620 mm (24.4")
Capacity Square 420 mm (16.5") 500 mm (20") 620 mm (24.4")
Capacity Rectangle (HxW) 420x 500 mm (16.5"x21.6") 500x 750 mm (20"x29.5") 620x 760 mm (24.4"x30")
Blade Speed 20-100 m/min  20-100 m/min  20-100 m/min
Blade Size (LxWxT) 5300x41x1.3 (208.7"x1.6"x0.05") 6040x54x1.6 (238"x2"x0.063") 7200x54x1.6 (283"x2"x0.063")
Blade Motor 7.5HP (5.5kW) 7.5HP (5.5kW) 10HP (7.5kW)
Hydraulic Motor 2HP (1.5kW) 2HP (1.5kW) 2HP (1.5kW)
Coolant Motor 1/8HP (0.1kW) 1/4HP (0.1875kW) 1/4HP (0.1875kW)
Workbed Height 700 mm (27.5") 700 mm (27.5") 600 mm (23.6")
Gross Weight 2300 kgs (5060 lbs) 2600 kgs (5720 lbs) 3900 kgs (8580 lbs)
Floor Space (LxWxH) 1100x2550x1900 mm (43.3"x100.4"x74.8") 1410x3150x2010 mm (55.5"x124"x79") 1200x3560x2360 mm (47.2"x140"x93")

MODEL SH-8580 SH-1311 SH-1713 SH-2020
Capacity (mm) 800 x 850 800 x 850 1300 x 1700 2000 x 2000
Blade Size (mm) 8300 x 67 8300 x 67 13000 x 80 15920 x 80
Blade Tension Hydraulic Hydraulic Hydraulic Hydraulic
Blade Motor 10 hp 15 / 20 hp 20 hp 25 hp
Work Feeding Hydraulic driven Hydraulic driven Hydraulic driven Hydraulic driven
Vice Full stroke hydraulic vise Full stroke hydraulic vise Stationary & movable
Weight 10500 kgs 14000 kgs 18000 kgs 35000 kgs
