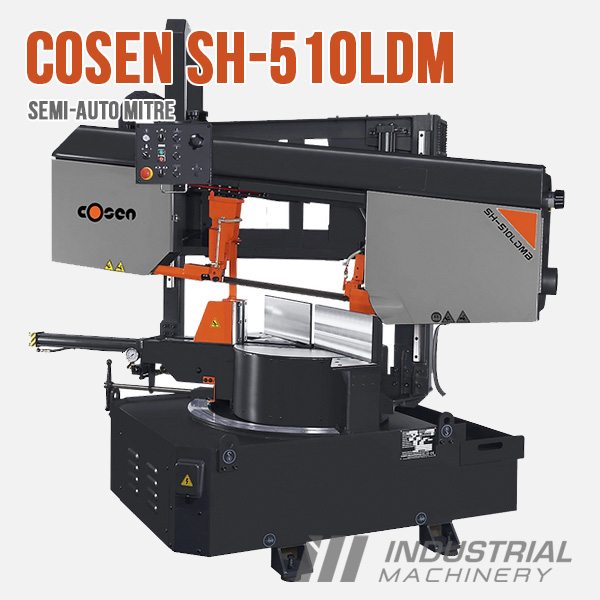

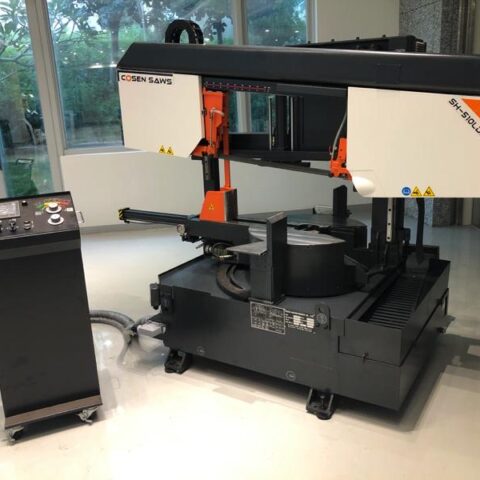

Cosen SH-510LDM Semi-Automatic Mitre Bandsaw

Out of stock

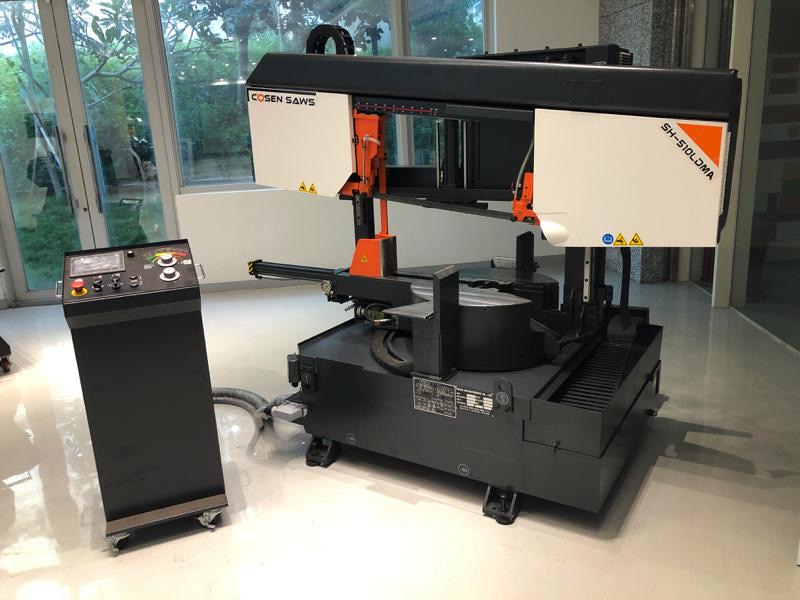

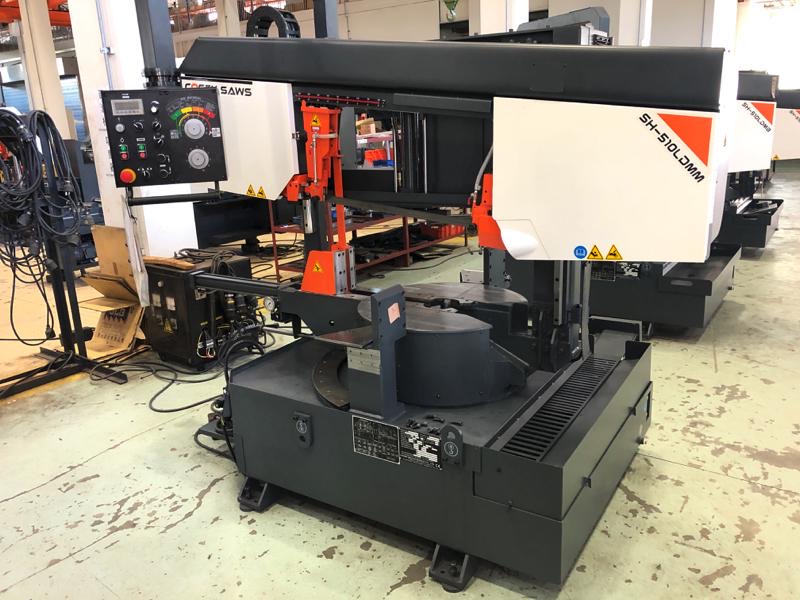

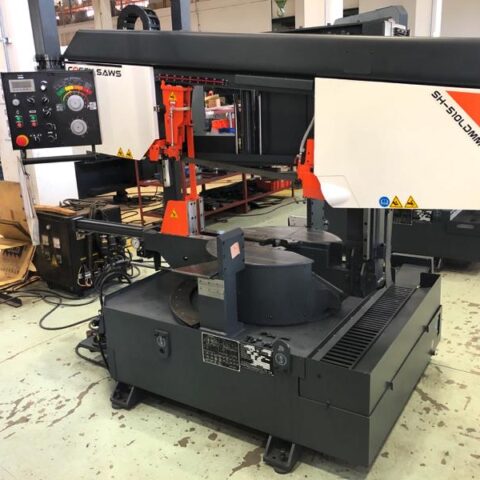

Introducing the COSEN SH-510LDM

Semi-Automatic Horizontal Dual Post, Mitre Band Saws.

Features:

  • 500mm capacity
  • High precision linear guide way design
  • Cast iron swivel center for straight and miter cuts (up to 60 degrees)
  • Gearbox engineered for high lateral pressure without thermal distortion
  • Inverter blade drive system for versatile blade speeds



Brands:

Features

  • Semi-Automatic Horizontal Dual Post, Mitering Band Saw
  • High precision linear guide way design
  • Heavy-duty cast iron swivel center features straight cutting and miter cuts (60 degrees)
  • Gearbox designed to accept high lateral pressure (no thermal distortion)
  • Inverter blade drive system which allows infinitely variable blade speeds
  • Adjustable flood coolant system
  • Motor driven, synchronized wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  • Cast-iron guide arms
  • Cast-iron hydraulic vise which synchronizes movement with guide arm
  • Automatic hydraulic blade tensioning device
  • Dual valve feed pressure and feed rate system for optimal cutting performance





MODEL SH-510LDM SH-710LDM
Angle ±45° ±60° ±45° ±60°
Capacity Round 320 mm 320 mm 200 mm 470 mm 420 mm 300 mm
Capacity Rectangle (H x W) 330 x 510 mm 330 x 320 mm 330 x 200 mm 420 x 710 mm 420 x 450 mm 420 x 300mm
Blade Speed 25-100 m/min 25-100 m/min
Blade Size (L x W x T) 4960 x 34 x 1.1 mm 6540 x 41 x 1.3 mm
Blade Motor 3 HP 7.5 HP
Saw Blade Tension Hydraulic Hydraulic
Hydraulic Motor 1 HP 1 HP
Coolant Motor 1/8 HP 1/8 HP
Work bed Height 780 mm 750 mm
Gross Weight 1440 kgs 2900 kgs
Floor Space (LxWxH) 2550 x 2463 x 2050 mm 3250 x 3200 x 1920 mm
*Design and specifications are subject to change without notice & obligation. *Machines may be shown with some options.
