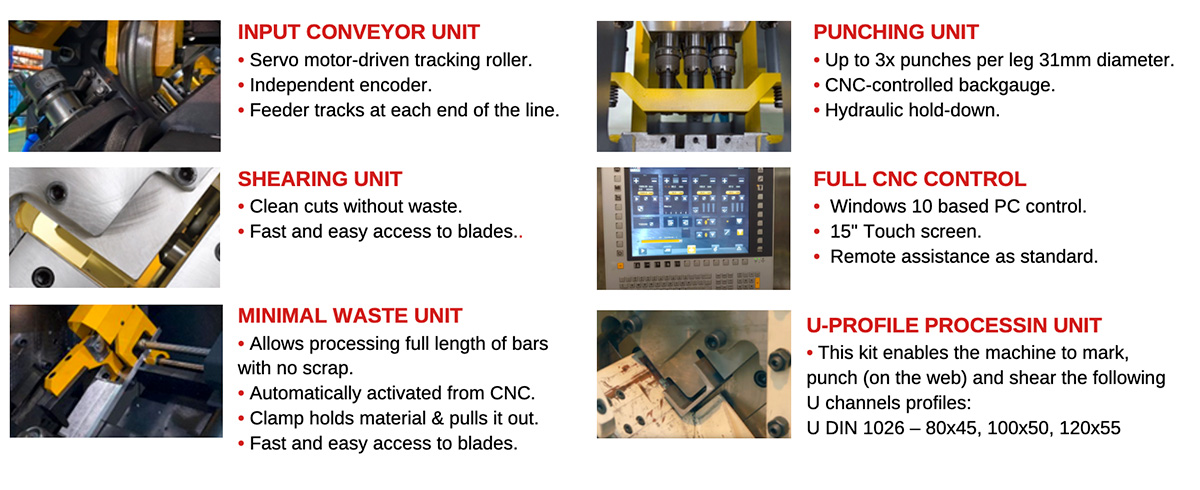

Features

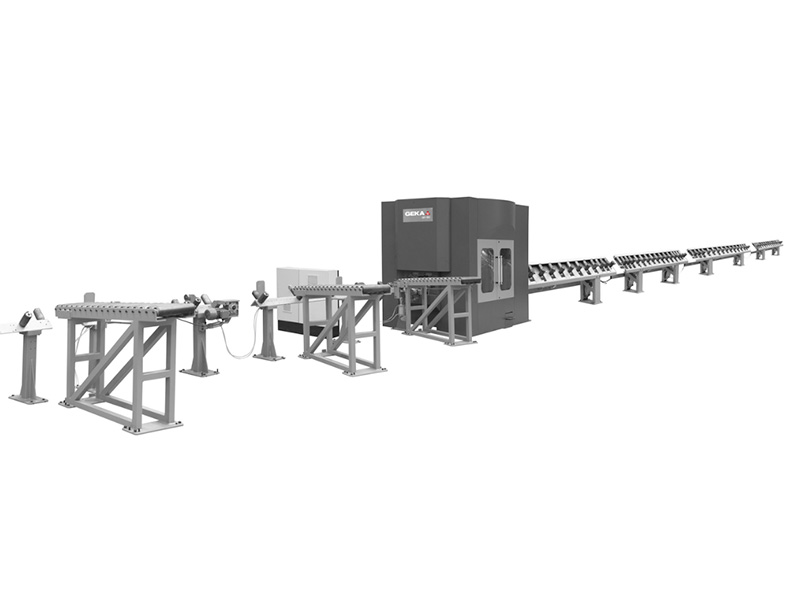

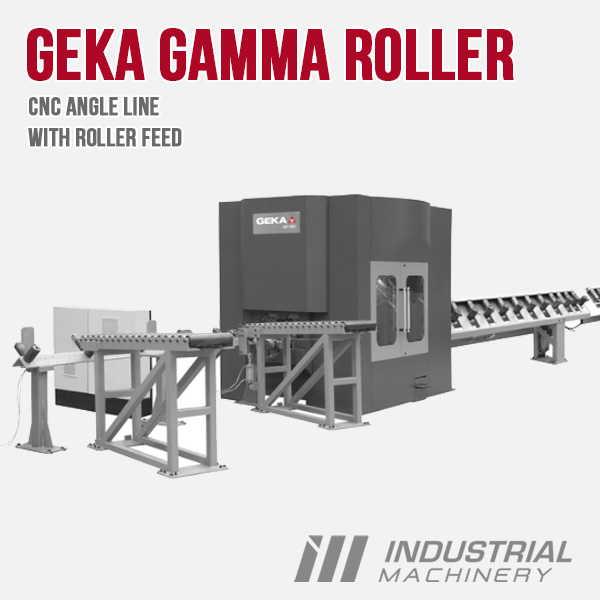

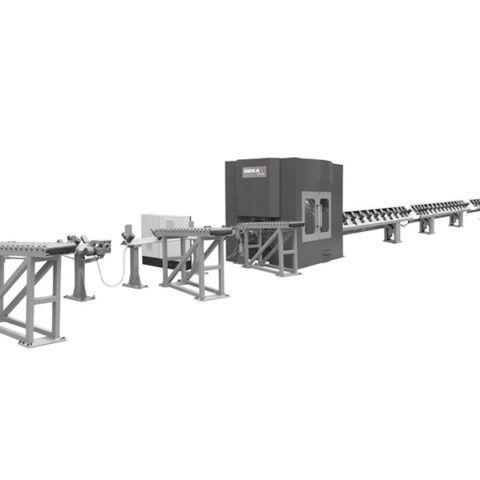

GEKA GR Series CNC Angle Lines
In stock
The GEKA GR (GAMMA ROLLER) Series represents machines meticulously engineered to achieve peak output and exceptional processing quality while occupying minimal space. These machines are equipped to handle 6 or 12-meter-long bars, and material movement is facilitated by a roller system, optimizing efficiency within a compact footprint. Additionally, customers can leverage GEKA’s patented Minimal Waste System, even with roller infeed, ensuring minimal waste per bar and virtually eliminating scrap.

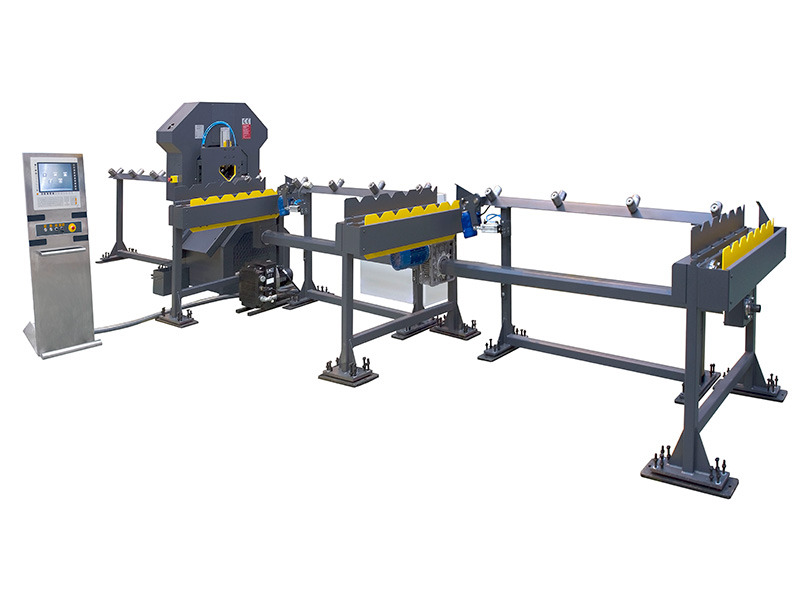

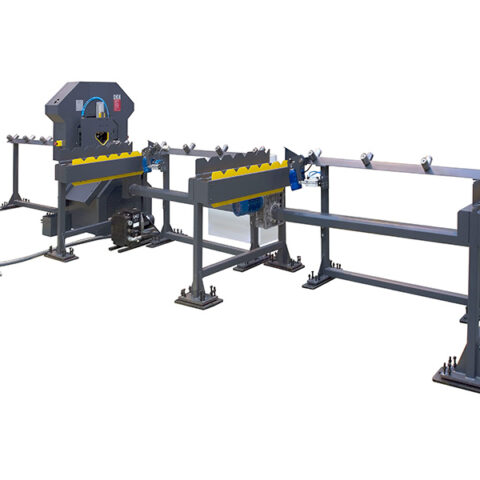

| GAMMA ROLLER | GR-80 | GR-150 | GR-160 | GR-180 | |
| Angle processing (min) (45kg/mm2) | mm | 30 x 30 x 3 | 40 x 40 x 4 | 40 x 40 x 4 | 50 x 50 x 5 |
| Angle processing (max) (45kg/mm2) | mm | 80 x 80 x 80 | 150 x 150 x 15 | 160 x 160 x 16 | 180 x 180 x 18 |
| Flats processing (max) (45kg/mm2) | mm | - | 150 x 15 | 160 x 16 | 180 x 18 |
| U-Channel processing (optional) (45kg/mm2) | mm | - | 120 | 120 | 140 |
| Infeed | type | Roller | Roller | Roller | Roller |
| Number of punches per leg | no. | 1 x 2 | 2 x 2 | 3 x 2 | 3 x 2 |
| Punching diameter (max) | mm | 25 | 31 | 31 | 31 |
| Punching power | tons | 34 | 80 | 80 | 80 |
| Shearing power | tons | 650 | 150 | 250 | 300 |
| Pressure marking 5 holders, 10 ch each | Std | - | - | Standard | Standard |
| Disc marking | Optional | - | 40 characters | 40 characters | 40 characters |
| Drilling station | Optional | - | - | - | - |
| Operating software in Windows 10 | Standard | LinePro Net | LinePro net | LinePro net | LinePro net |
| Optional | LANTEK | LANTEK | LANTEK | LANTEK | |
