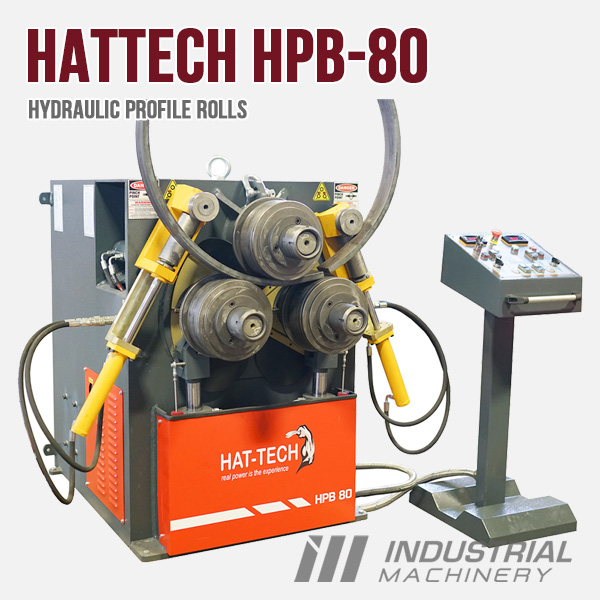

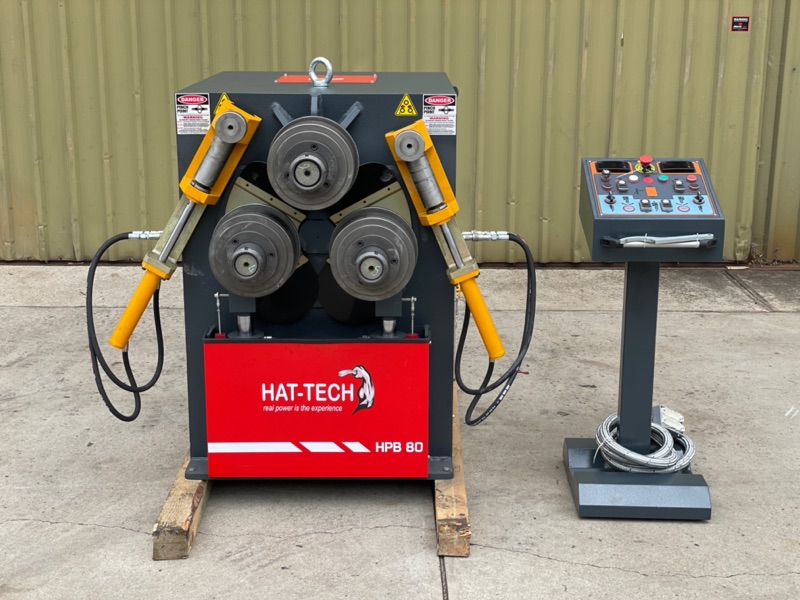

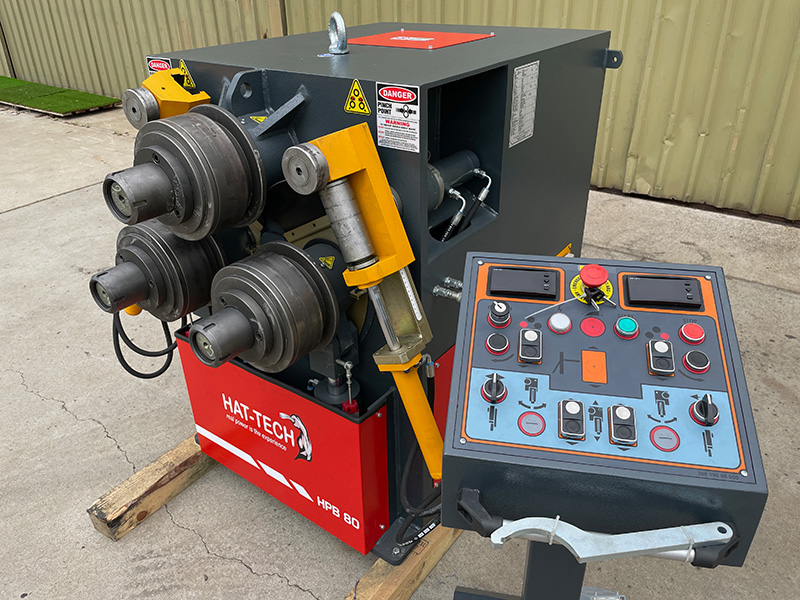

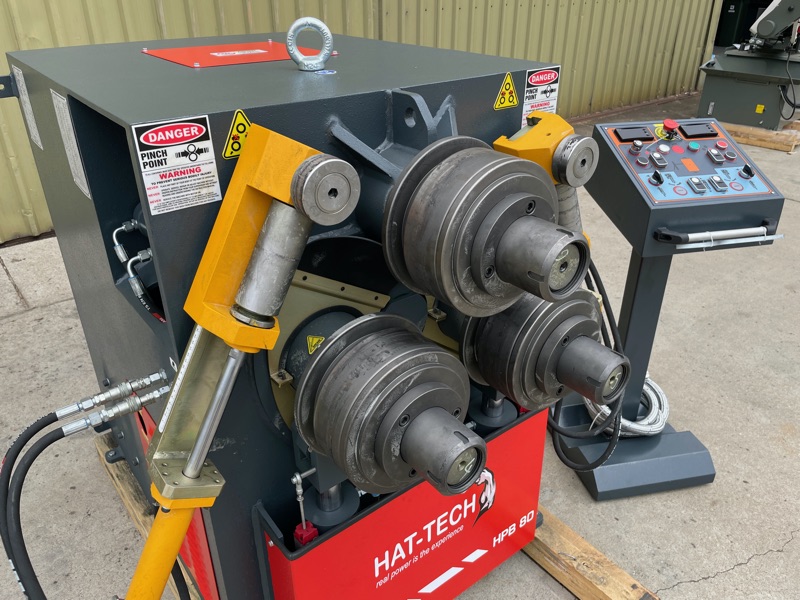

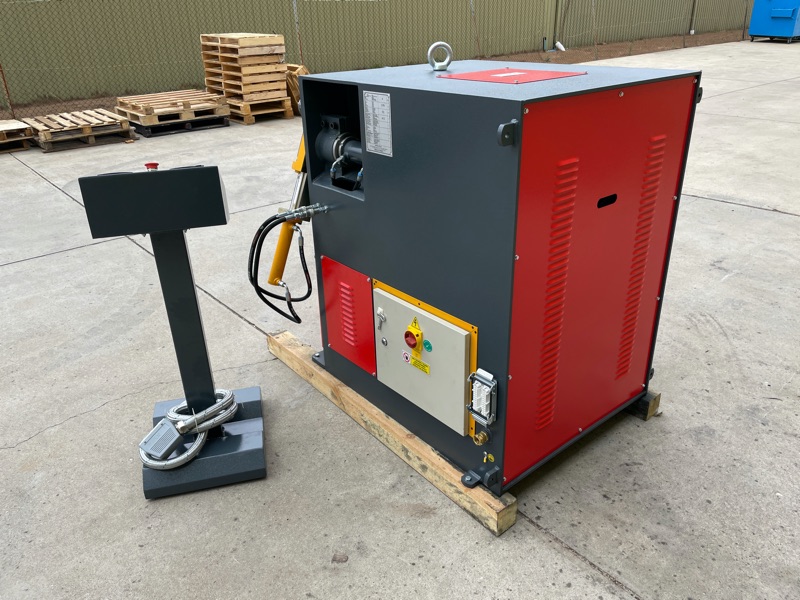

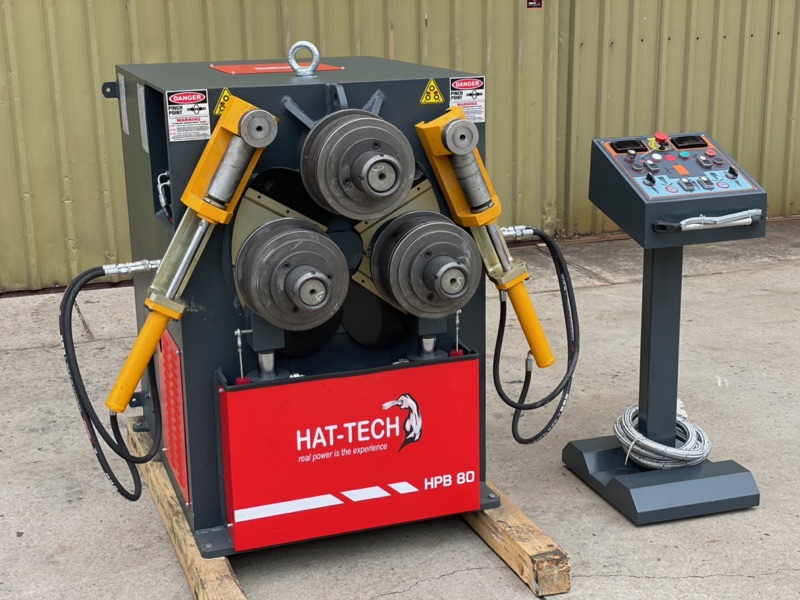

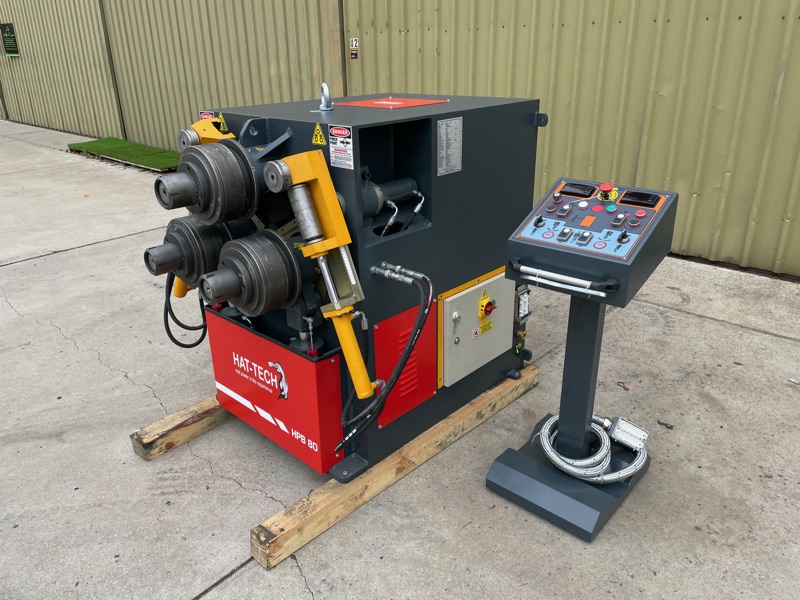

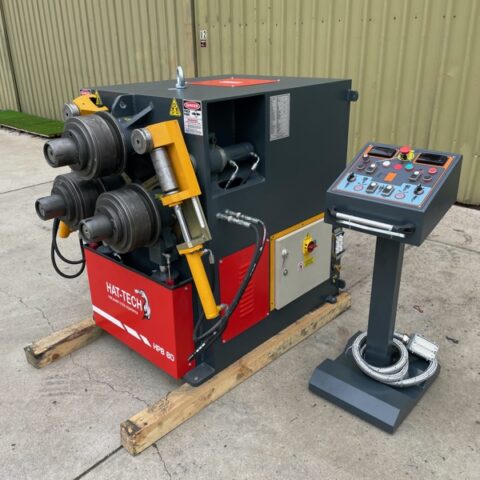

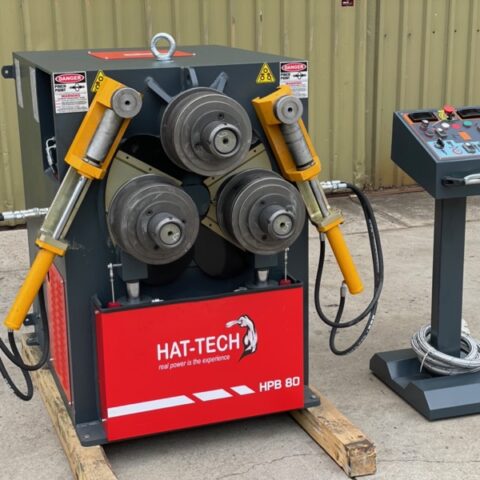

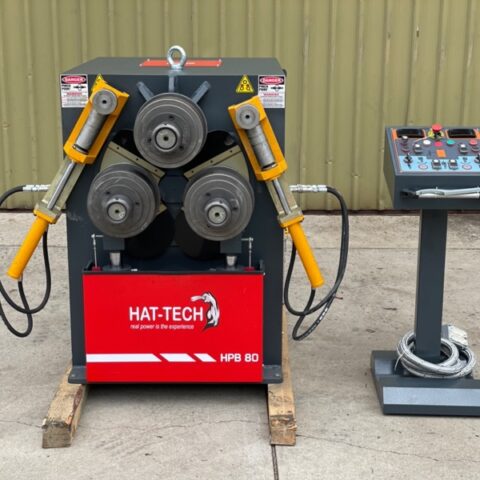

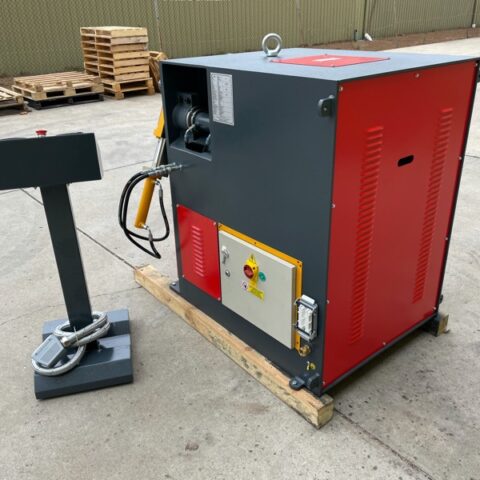

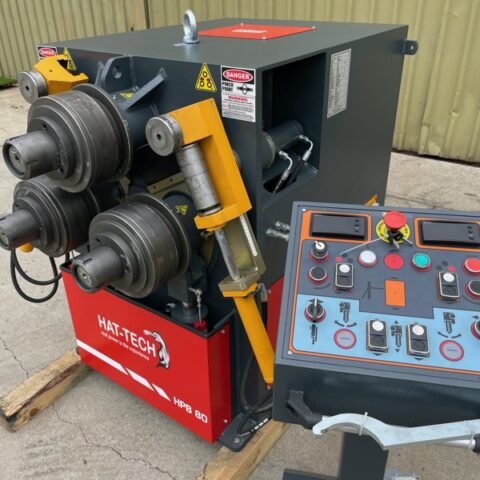

Hattech Profile Rolls HPB-50-65-80 Hydraulic

Standard Features and Equipment

Options available

HPB Series	Unit	HPB 50	HPB 65	HPB 80
		2” shaft Ø	2.4” shaft Ø	3.1” shaft Ø
Bottom Rolls shaft	mm	Ø50 (1.97”)	Ø50 (1.97”)	Ø70 (2.76’’)
Roll Diameter	mm	Ø160 (6.3”)	Ø180 (7.09”)	Ø245 (9.65”)
Working speed	m / min	4 (180 in / min)	5 (200 in / min)	6 (235 in / min)
Motor power	kW	1,5 (2.01 HP)	3 (4.02 HP)	4 (5.36 HP)
Length	mm	810 (31.89’’)	1200 (47.24’’)	1450 (57.09’’)
Width	mm	950 (37.4’’)	850 (33.46’’)	1000 (39.37’’)
Height	mm	1500 (59.06’’)	1200 (47.24’’)	1400 (55.12’’)
Weight	kg	500 (1102.3 lbs)	1000 (2204.6 lbs.)	1700 (3747.8 lbs.)
