| MODEL |

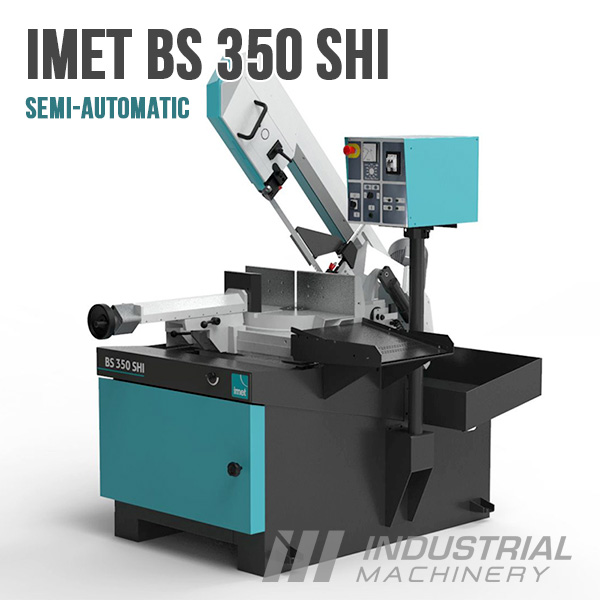

BS 350 SHI |
BS 400 SHI |
| Cutting capacity at 0° |
Round: 305mm |
Round: 310mm |
| Square: 250mm |
Square: 280mm |
| Rectangular: 350x200mm |
Rectangular: 400x250mm |
| Cutting capacity at 45° left |
Round: 250mm |
Round: 280mm |
| Square: 230mm |
Square: 270mm |
| Rectangular: 230x200mm |
Rectangular: 300x220mm |
| Cutting capacity at 45° right |
Round: 255mm |
Round: 280mm |
| Square: 230mm |
Square: 270mm |
| Rectangular: 230x200mm |
Rectangular: 300x220mm |
| Cutting capacity at 60° left |
Round: 175mm |
Round: 210mm |
| Square: 155mm |
Square: 200mm |
| Rectangular: 170x100mm |
Rectangular: 200x200mm |
| Cutting capacity solid material (C45) |
Round 200mm |
250mm |
| Cutting capacity bundle cutting |
Max: 230x160mm |
Max: 280x160mm |
| Min: 90x10mm |
Min. 90x10mm |
| Blade motor |
1.5/2.2 KW |
1.5/2.2KW |
| Blade motor with ESC speed variator |
2.2 KW |
2.2 KW |
| Blade speed |
37/74 m/min |
37/74 m/min |
| Blade speed with ESC speed variator |
18/100 m/min |
18-100 m/min |
| Blade size |
3370x27x0.9mm |
4020x34x1.1mm |
| Height of the work surface |
940mm |
940mm |
| Weight |
649kg |
680Kg |
| Dimensions |
1480x1750x1900mm |
1530x1790x2240mm |
