FEATURES KS 620

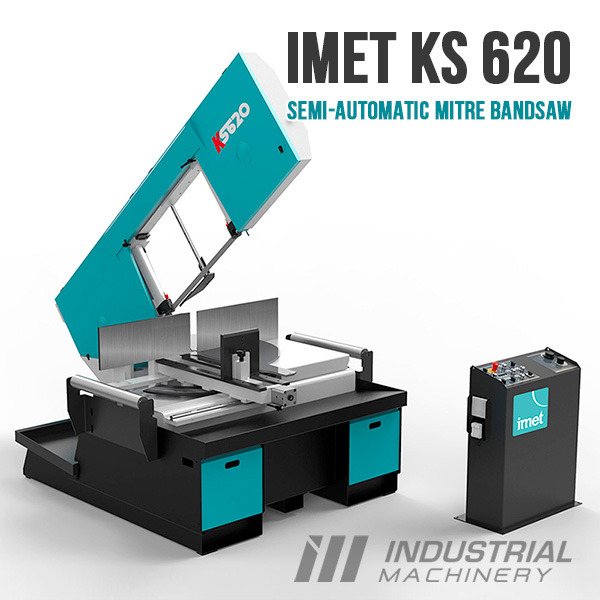

IMET KS 620 Semi-Auto Mitre Bandsaw
Original price was: $45,000.00.$40,000.00Current price is: $40,000.00.
In stock
Semi-Automatic Bandsaw for Steel Constructions

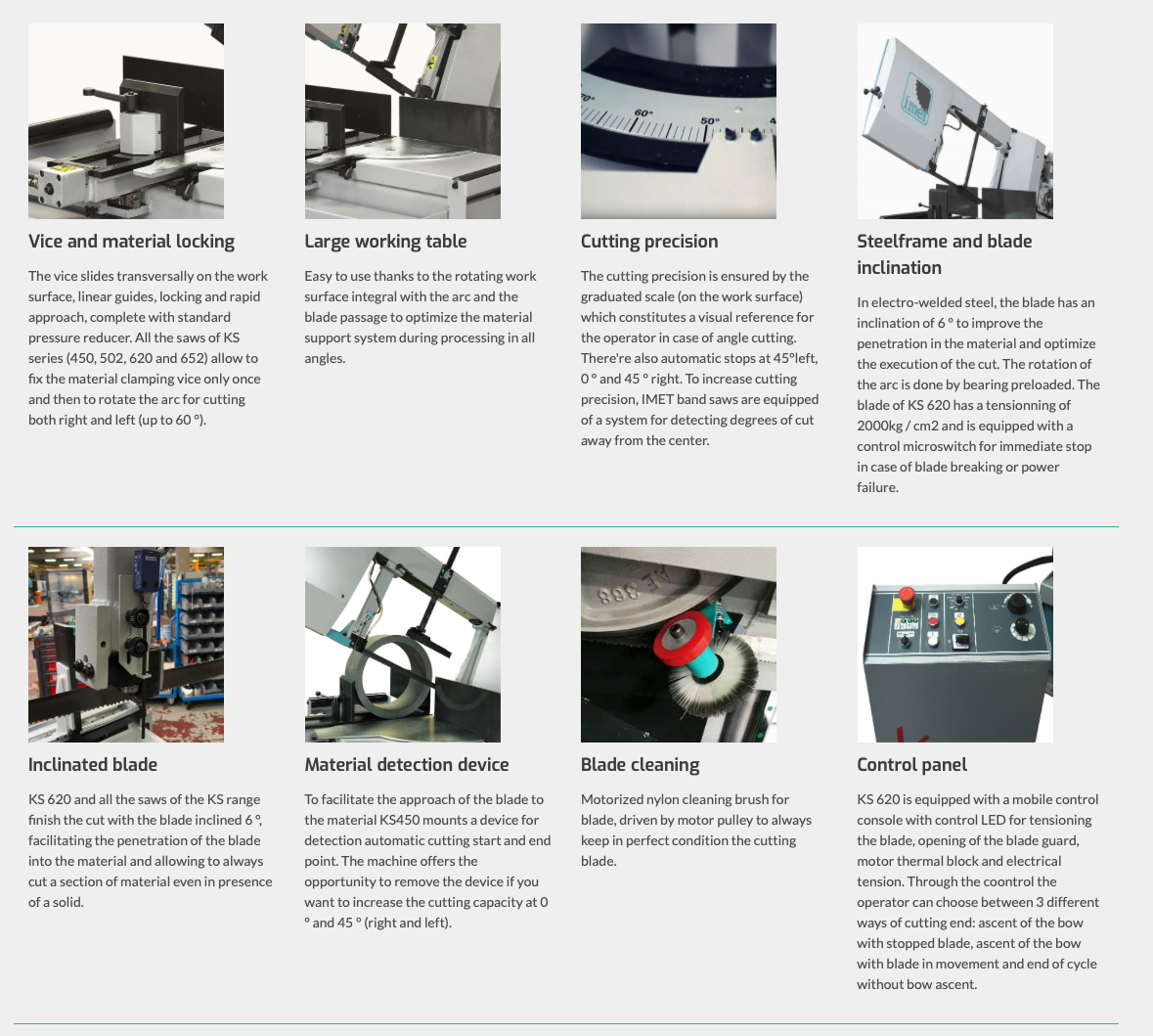

The KS saws are the only ones in their class that can cut 60 ° right and left by positioning the locking vice only once. The vice is sliding transversely on the support surface with locking and rapid approach.
- 620mm Capacity
- Semi-Automatic
- Double Mitre Cutting
TECHNICAL INFORMATION
| Cutting capacity at 0° | Round: 500mm Square: 420mm Rectangular: 600x400mm |
| Cutting capacity at 45° left/right | Round: 445mm Square: 410mm Rectangular: 450x250mm |
| Cutting capacity at 60° left | Round: 320mm Square: 290mm Rectangular: 280x350mm |
| Cutting capacity at 60° right | Round: 245mm Square: 240mm Rectangular: 240x310mm |
| Cutting capacity (BUNDLE) | Max: 500x300mm Min: 160x40mm |
| Cutting capacity at 0° solids (C45) | 250mm |
| Blade size | 5320x34x1.1mm |
| Blade speed | 15-100m/min |
| Blade | 3KW |
| Working table height | 805mm |
| Blade inclination | 6° |
| Weight | 1450kg |
| Dimensions | 1705x2500x2500mm |
