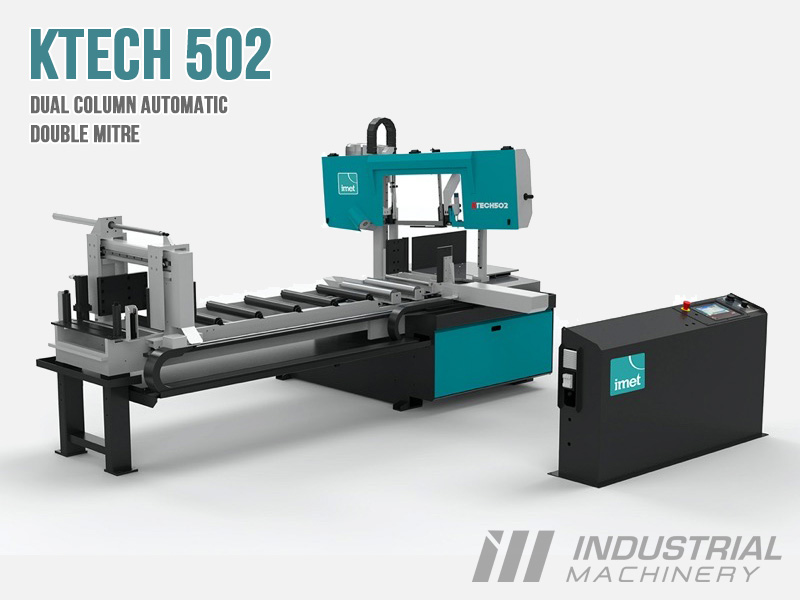

Introducing IMET KTECH: Precision and Efficiency in Automatic Double Column Bandsaws with CNC Control
The IMET KTECH Series is a state-of-the-art automatic double column bandsaw, equipped with the latest technological advancements for cutting bars, tubes, solids, and profiles. Offering remarkable versatility, it effortlessly handles angles of up to 60° in both left and right directions. This automatic sawing machine features CNC-controlled feed and sawframe, managed via a user-friendly 10″ touch screen interface. It’s the ultimate professional’s tool, delivering unparalleled precision and efficiency for a wide range of cutting applications. Experience the future of cutting technology with IMET KTECH 502.
IMET KTECH is the line of automatic double column bandsaws with mitre cutting and 10″ touch screen display for programming. These machines are dedicated to carpentires, steel works factories, structural steels dealers and producers who cuts bars, beams, tubes and profiles.
Main features
| Model | KTECH 502 |
| Cutting capacity at 0° | Round: 350mm |
| Quadrato: 330mm | |
| Rectangular: 500x310mm | |
| Cutting capacity ata 45° (sx) | Round: 300mm |
| Quadrato: 300mm | |
| Rectangular: 300x300m | |
| Cutting capacity ata 45° (dx) | Round: 300mm |
| Quadrato: 300mm | |
| Rectangular: 300x300mm | |
| Cutting capacity ata 60° (sx) | Round: 150mm |
| Quadrato: 150mm | |
| Rectangular: 150x320mm | |
| Cutting capacity ata 60° (dx) | Round: 150mm |
| Quadrato: 150mm | |
| Rectangular: 150x320mm | |
| Cutting capacity bundle / scrap-end | Max: 500x250mm |
| Min: 130x20mm | |
| Scrap-end: 255mm | |
| Cutting capacity at 0° solids (C45) | 250mm |
| Minimum cutting diameter | 10mm |
| Minimum cutting length | 25mm |
| Minumum scrap-end | 240mm (single cut at 0°) |
| Blade size | 4250x34x1.1mm |
| Blade speed | From 18 to 100 m/min |
| Blade motor | 2.2KW |
| Blade tension | 1900kg/cm2 |
| Feeder length | 2000mm (option F3000/6000mm) |
| Feeder motor power | Brushless BMH 2.5 N-m |
| Max load on feeder | 2000kg |
| Sawframe rotation power | 0,55Kw |
| Hydraulic unit power | 0,55Kw |
| Size - Working plate height - weight | 3700x2300x2180mm / 845mm / 2250kg |
