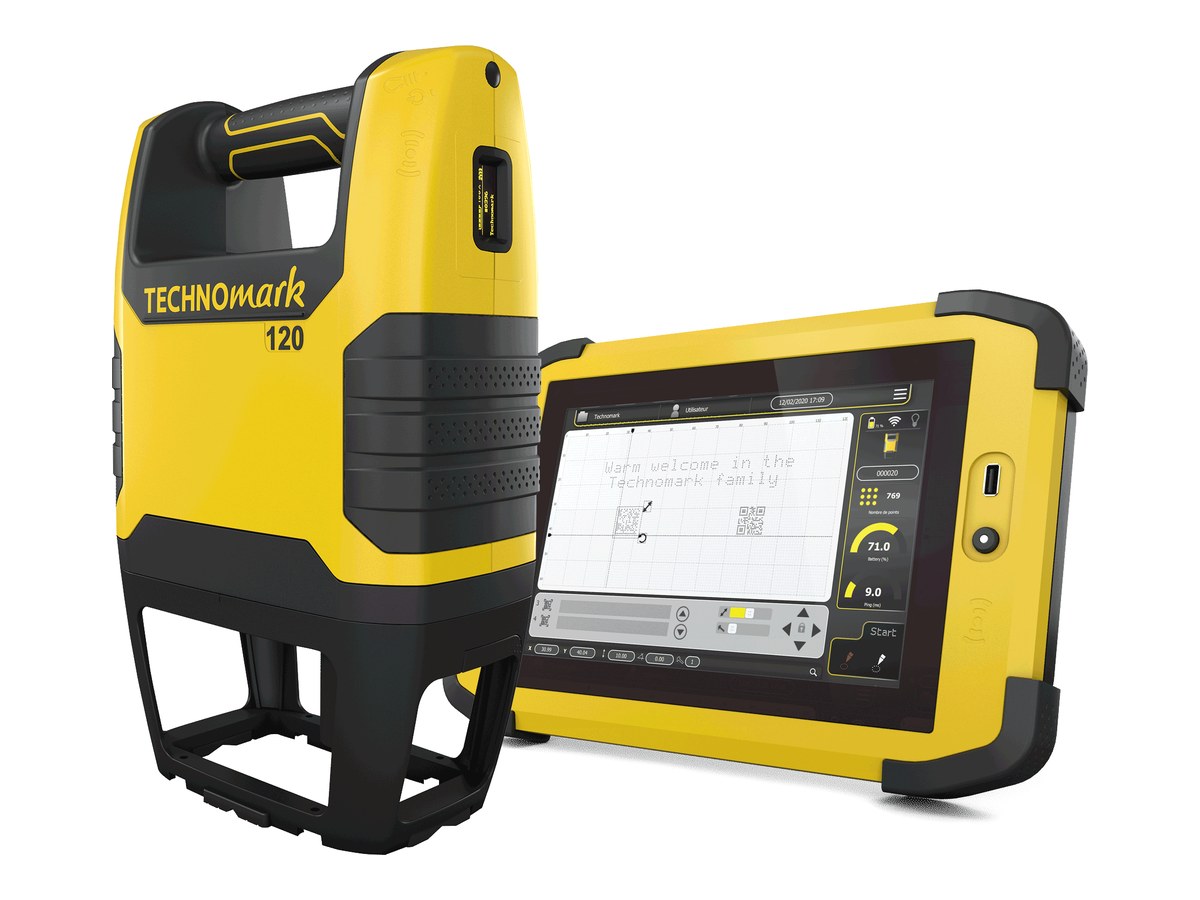

Technomark EASY – Portable, wireless, network-connected dot peen machine

$10,500.00

In stock

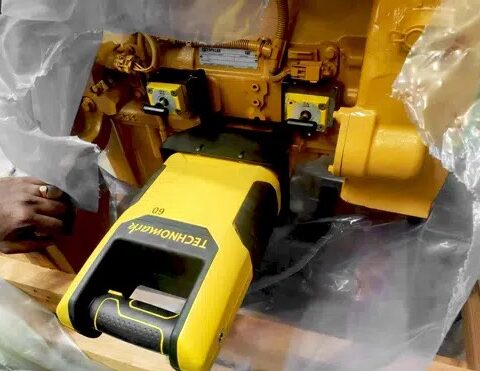

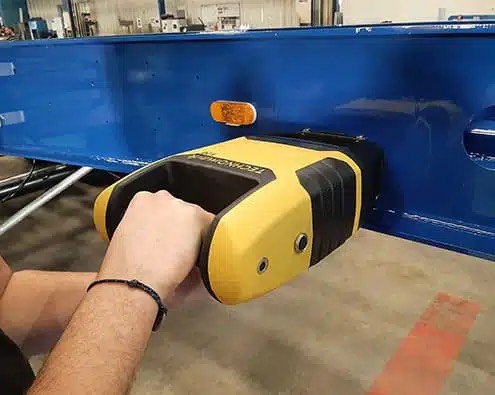

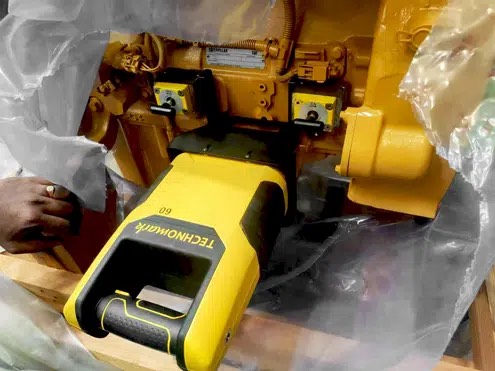

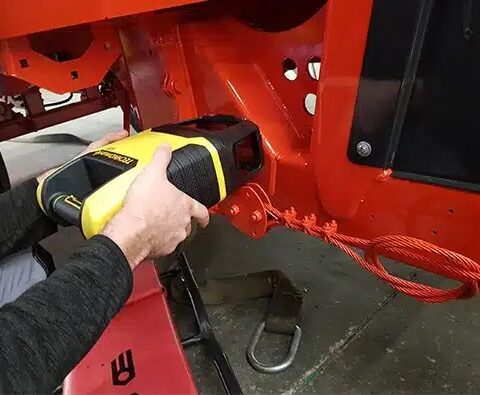

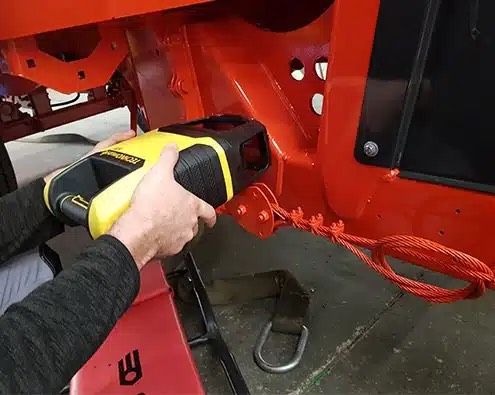

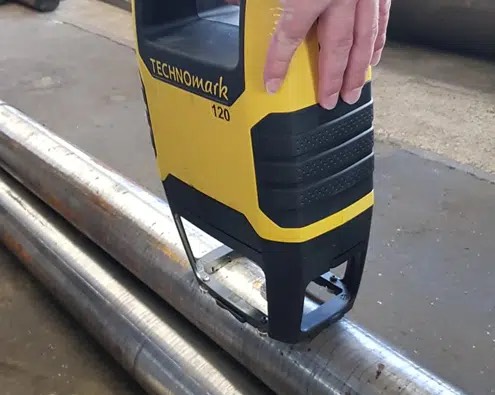

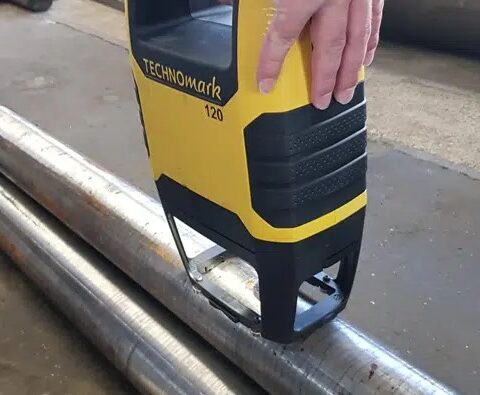

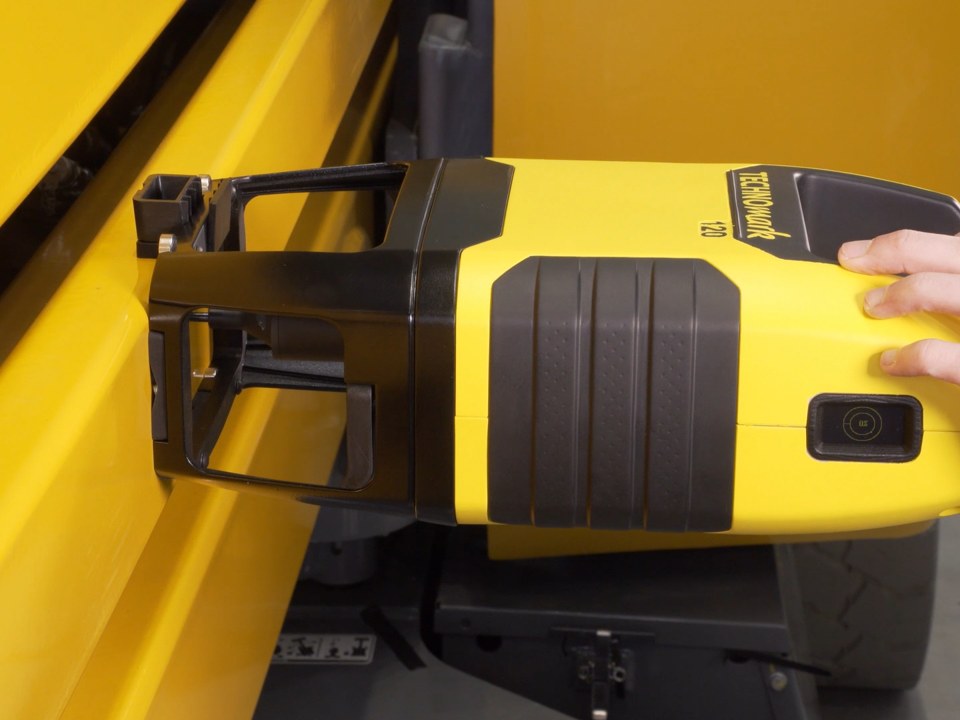

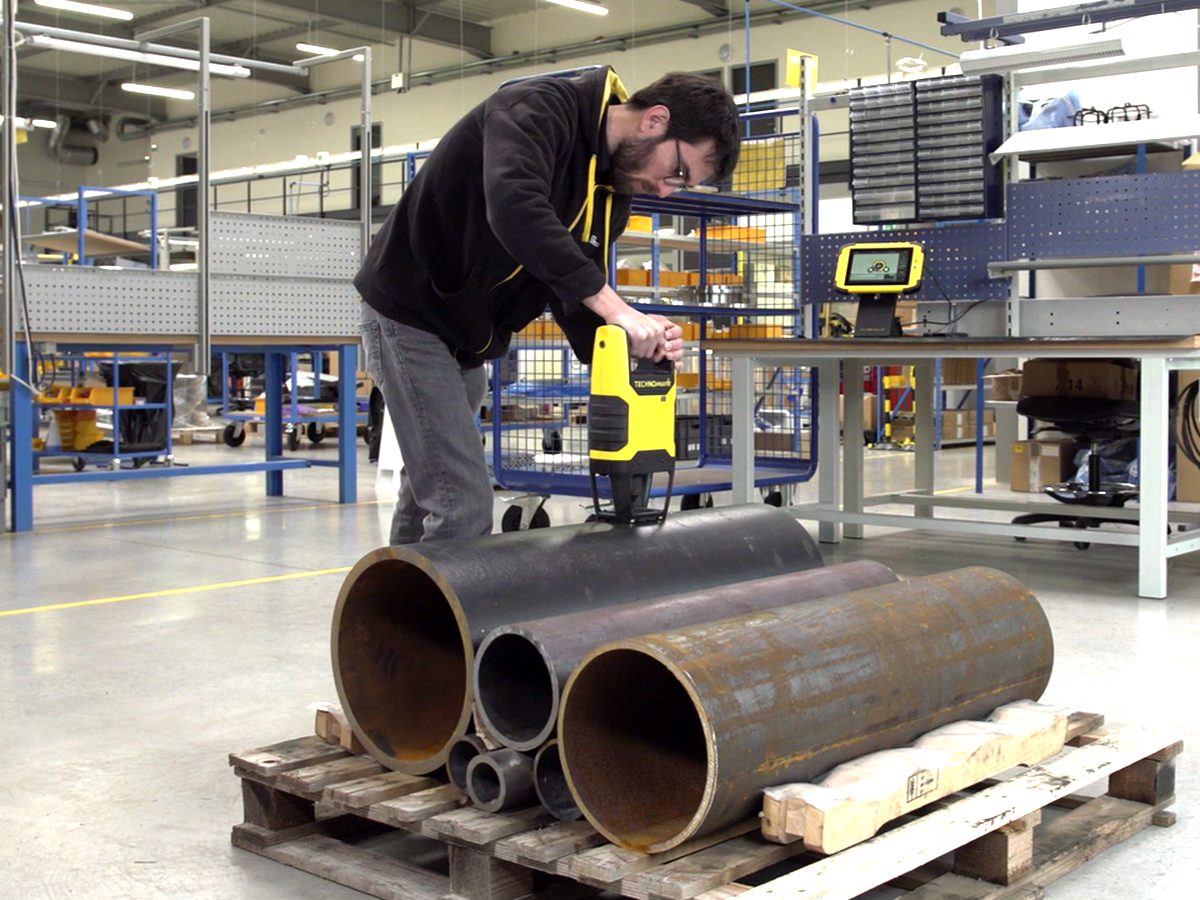

The Easy dot peen marking system from the Connect series offers an unrivalled level of functionality, which is easy to use whilst delivering an exceptional operating experience to the user. It is the ideal machine for mobile use that will allow the user to mark medium to large parts even in difficult to access locations.

Video

Head

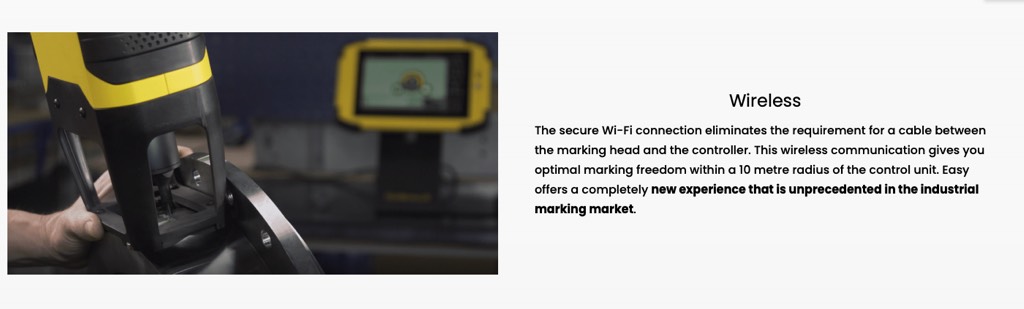

Distance between the head and the controller	10m
Marking windows	60x30mm and 120x60mm
Number of marking speeds	3 speeds
Number of marking forces	11 forces
Lithium ion battery	22V

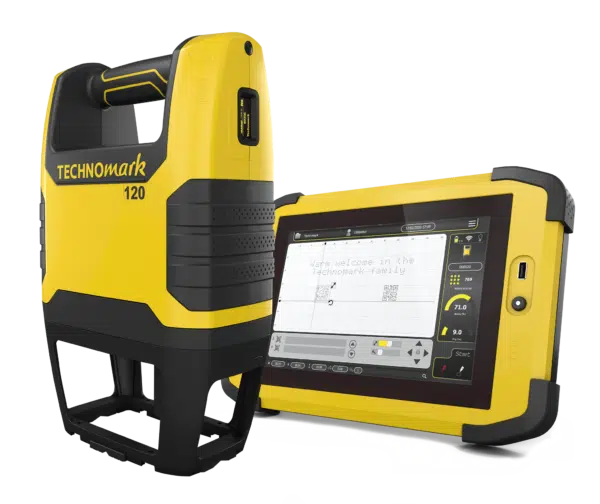

Controller

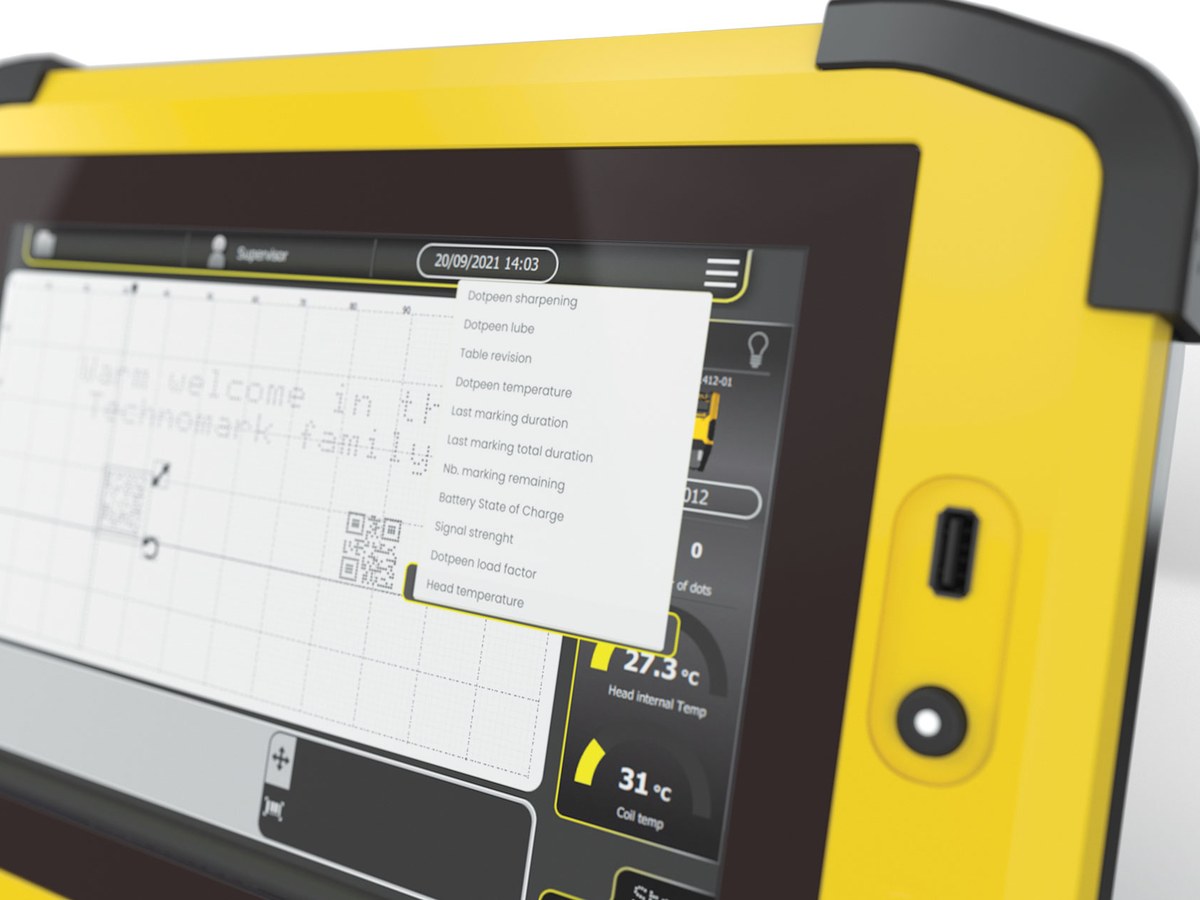

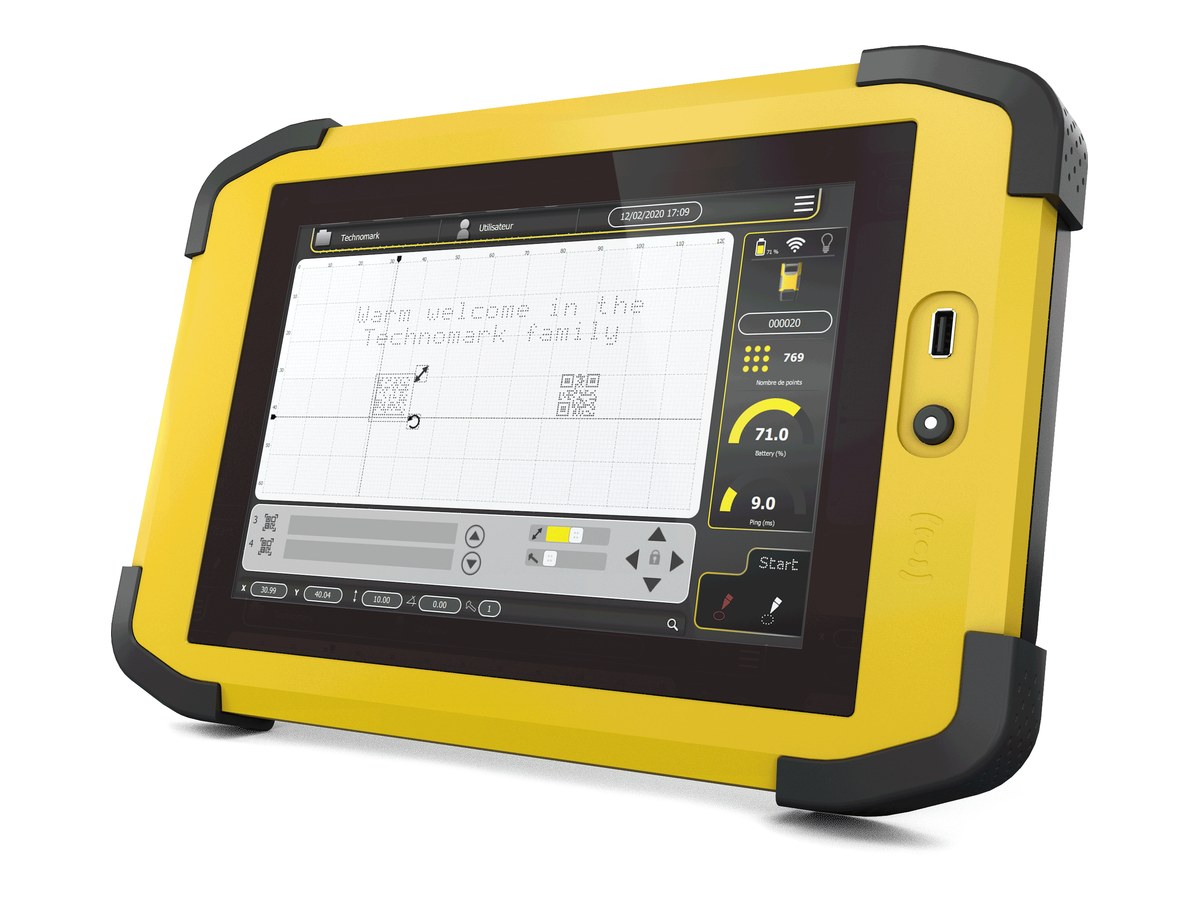

Screen	10 inches in tempered glass

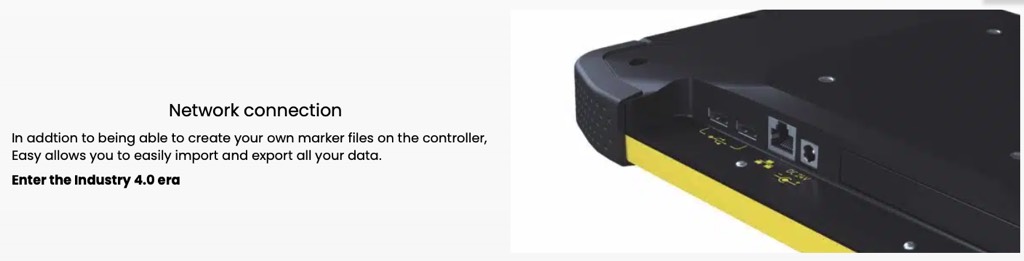

Connectivity	1 Ethernet port and 3 USB ports

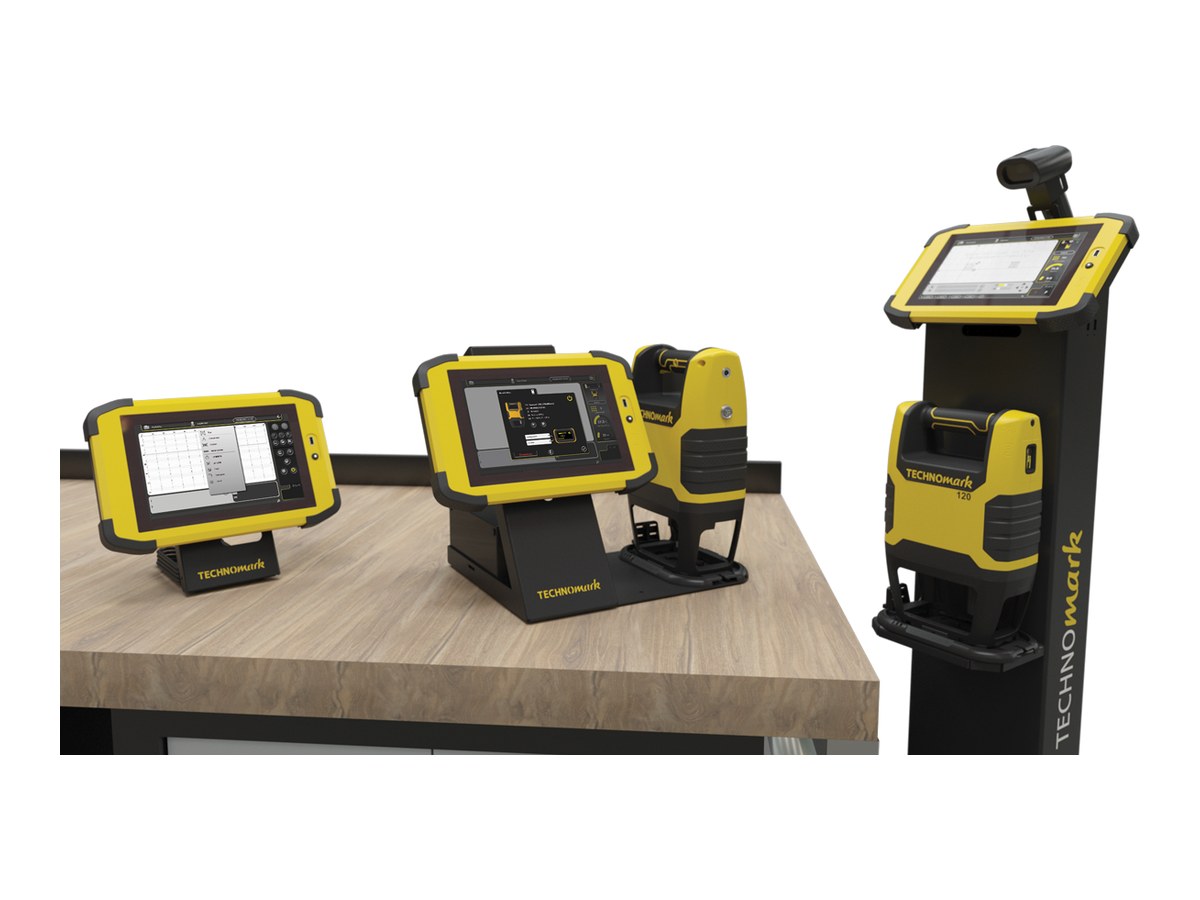

Controller holder	Universal VESA 100 fixings for 3 holder configurations
Protection	4 protective bumpers and technical plastic shell

Marking Types

Marking types	Alphanumerical content
Straight marking	Fixed text
Angled marking	Sequential numbering
Radial marking	Data import variable
Mirror marking	Time and date stamp
2D Barcode	Graphic types
Datamatrix	Logo
QR Code	Shape
ECC200	Symbol

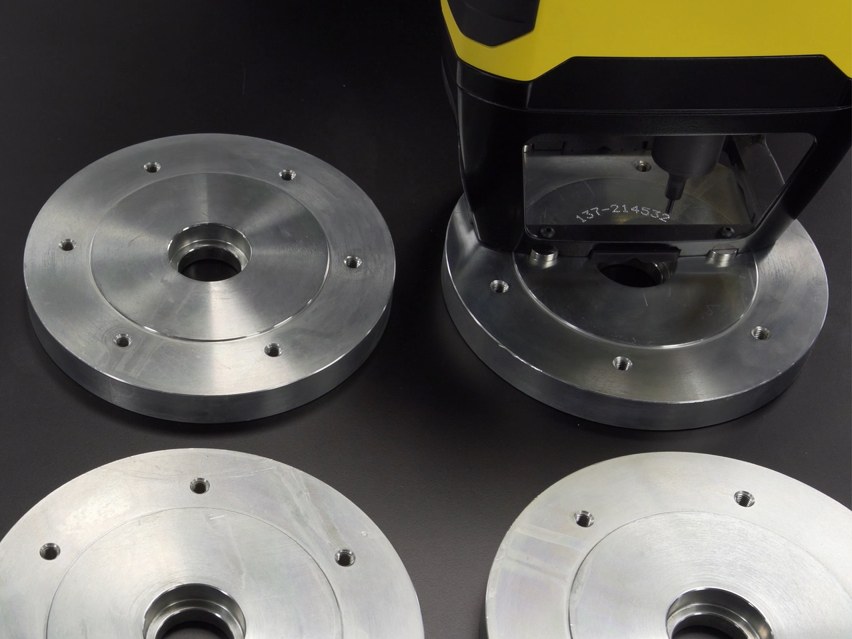

Materials

Metals		Plastics
Steel	●	PVC	●
Cast iron	●	Polyamide	●
Stainless steel	●	Polycarbonate	●
Aluminium	●	Polyethylene	●
Brass	●	Polypropylene	●
Copper	●	POM	●
Silver	●	Acrylic	●
Nickel	●
Titanium	●
Other alloys	●
