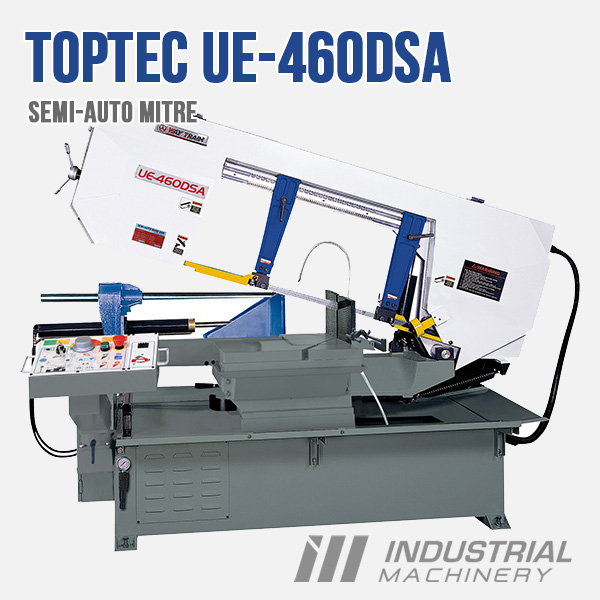

Toptec UE-460DSA Semi-Automatic Mitre bandsaw

$29,500.00

In stock

Introducing Toptec UE331DSA, UE460DSA, and UE530DSA Mitre Cutting Bandsaws: Precision and Power in One Package

Toptec Mitre Cutting Bandsaws are designed to deliver precision cuts and exceptional power for a wide range of materials and applications. Whether you’re in metalworking, fabrication, or manufacturing, these bandsaws are your trusted partners for top-tier performance.

Premium Edition Includes:

  • Large capacity, Semi-automatic operation
  • Dual direction mitre cutting swivel frame to 60 degrees.
  • Movable electronic control panel with diagnostics.
Brands:
SKU: Mac. Cut Width 600mm

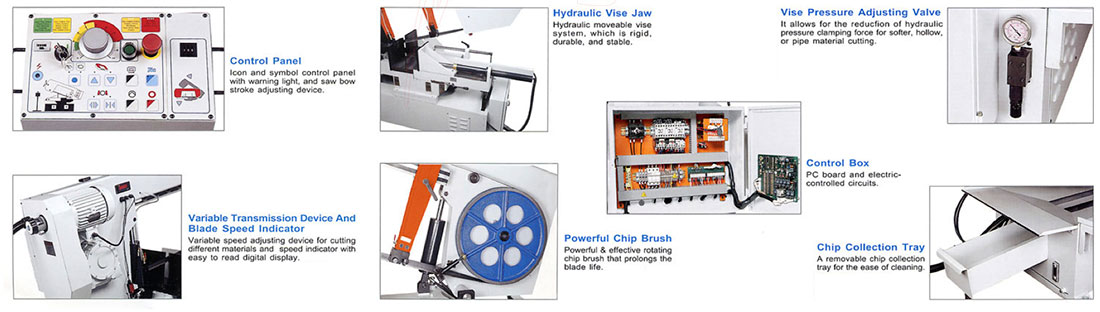

Features

  • Easily set saw height from control panel
  • Miter cutting in both directions up to 60°
  • Use motor inverter control blade speed
  • Hydraulic blade tension device
  • Vise clamping pressure regulator
  • Saw bow swivel by manual
  • Vice seat movement by manual
  • Full stroke vice and assist rod to help clamping stable
  • Hydraulic blade tension device



MODEL UE-331DSA UE-460DSA UE-530DSA
Cutting capacity 90º 500mm (W) 600mm (W) 700mm (W)
Cutting capacity 45º 315mm (W) 460mm (W) 500mm (W)
Cutting capacity 60º 215mm (W) 330mm (W) 400mm (W)
Main motor 3 HP 5 HP 7.5 HP
Angular cut 0~60º R / 0~45º L 0~60º R & L
Blade size 34 x 4180mm 41 x 5330mm 41 x 6030mm
Weight 1000 kgs 1500 kgs 2040 kgs
